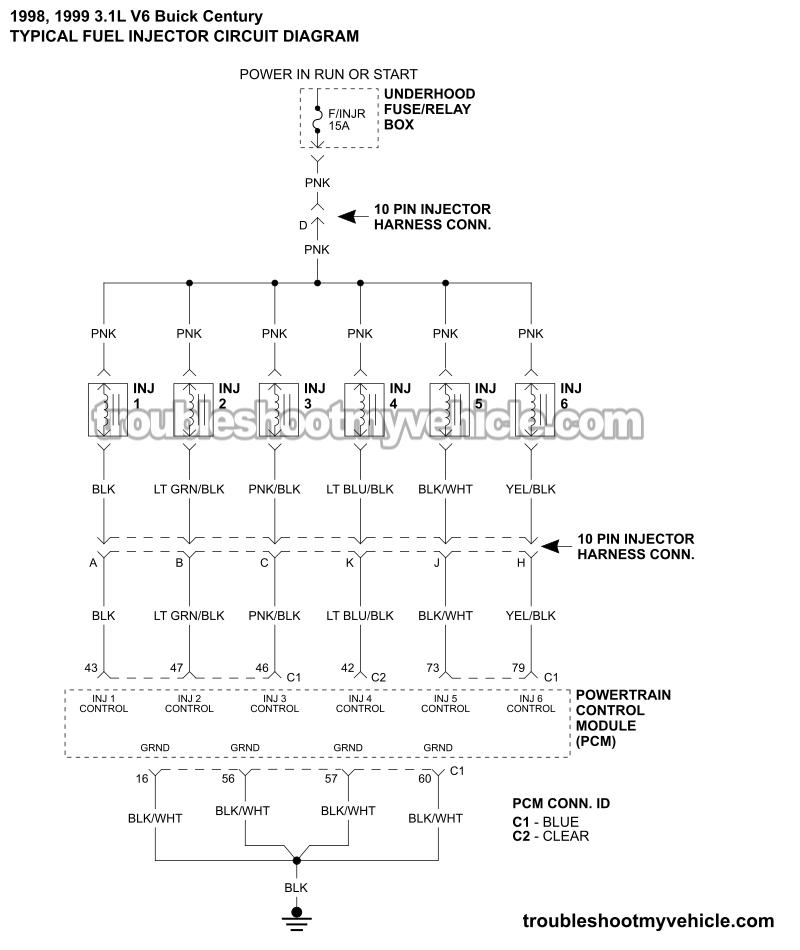

Fuel Injector Circuit Wiring Diagram (1998-1999 3.1L V6 Buick Century)

APPLIES TO: This fuel injector circuit wiring diagram applies to the following vehicles:

• 3.1L V6 Buick Century: 1998, 1999.

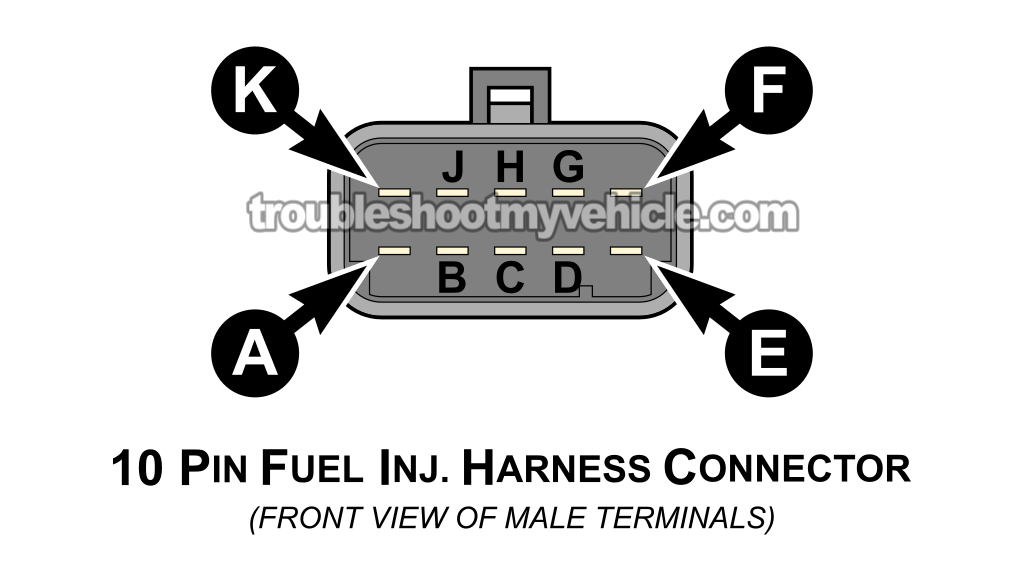

10 Pin Fuel Injector Harness Connector Pinout

LOCATION: The 10-Pin Fuel Injector Harness Connector is located behind the alternator.

Pin	Color	Desc
A	BLK	Fuel Injector #1 Control
B	LT GRN/BLK	Fuel Injector #2 Control
C	PNK/BLK	Fuel Injector #3 Control
D	PNK	Ignition 12 Volts
E	BLK	MAP Sensor Ground
F	GRY	MAP Sensor 5 Volt Reference
G	LT GRN	MAP Sensor Signal
H	YEL/BLK	Fuel Injector #6 Control
J	BLK/WHT	Fuel Injector #5 Control
K	LT BLU/BLK	Fuel Injector #4 Control

Fuel Injector Basics

At first glance, you might think that testing the injectors is difficult —since they're all located underneath the intake manifold plenum— on your 1998-1999 3.1L V6 Buick Century.

But the cool thing is that we don't need to remove the intake manifold plenum to begin our fuel injector diagnostic. Yep, we can test the injectors and perform several different checks through the 10-pin fuel injector wiring harness connector, which is located behind the alternator.

From this connector, we can access all six fuel injector circuits in one convenient and very accessible location.

Now, the thing to know and keep in mind is that the fuel injector harness side of the connector has male terminals. This is the side where our tests are going to be done. The engine wiring harness side, the one that connects to the PCM, has female terminals.

If you're needing to test the fuel injectors, one of the fastest and easiest tests you can perform right off the bat is a fuel injector resistance test. In this tutorial, I'll show you how to do it step by step:

FUEL INJECTOR TESTS: How To Test The Fuel Injectors (1994-1999 3.1L V6 Buick Century).
