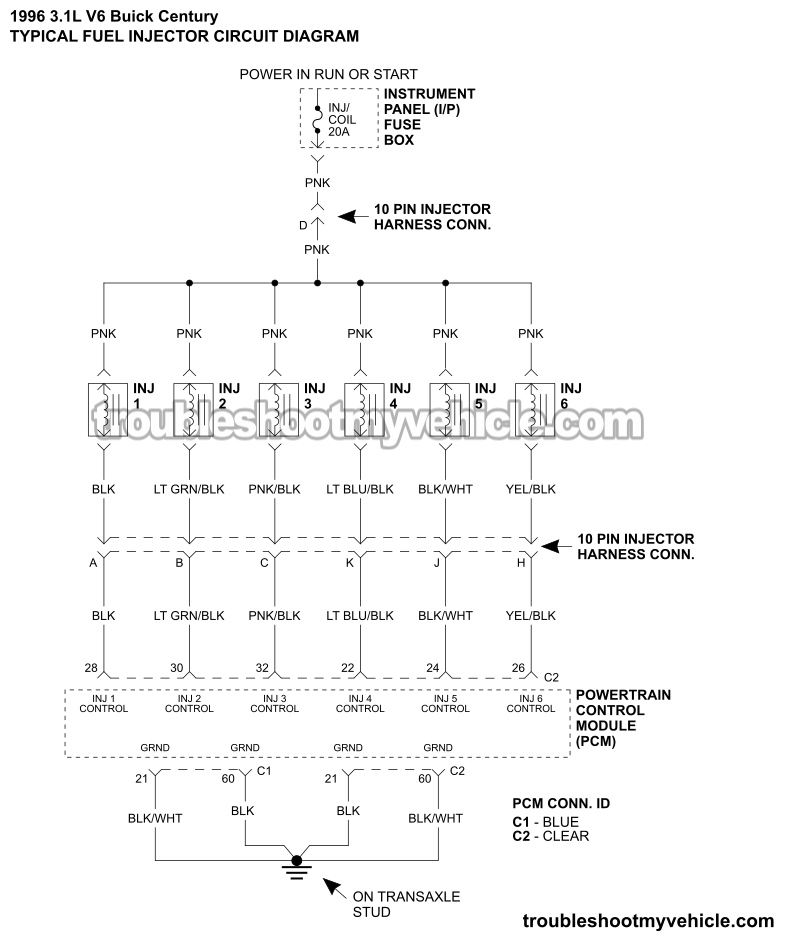

Fuel Injector Circuit Wiring Diagram (1996 3.1L V6 Buick Century)

APPLIES TO: This fuel injector circuit wiring diagram applies to the following vehicles:

• 3.1L V6 Buick Century: 1996.

10 Pin Fuel Injector Harness Connector Pinout

LOCATION: The 10-Pin Fuel Injector Harness Connector is located behind the alternator.

Pin	Color	Desc
A	BLK	Fuel Injector #1 Control
B	LT GRN/BLK	Fuel Injector #2 Control
C	PNK/BLK	Fuel Injector #3 Control
D	PNK	Ignition 12 Volts
E	BLK	MAP Sensor Ground
F	GRY	MAP Sensor 5 Volt Reference
G	LT GRN	MAP Sensor Signal
H	YEL/BLK	Fuel Injector #6 Control
J	BLK/WHT	Fuel Injector #5 Control
K	LT BLU/BLK	Fuel Injector #4 Control

Fuel Injector Basics

As you're probably already aware, the fuel injectors on your 1996 3.1L Buick Century are located underneath the intake manifold plenum. So when it comes to testing them, at first glance it seems like it'd be quite the challenge.

But the cool thing is that you can test them without having to remove the intake manifold plenum. We can do that right at the 10-pin fuel injector wiring harness connector, which is located behind the alternator. This connector gives us easy access to all six fuel injector circuits, so we can perform just about any electrical test we need to.

One thing to keep in mind is that the fuel injector harness side of the connector (the side that goes to the injectors) has male terminals. The engine wiring harness side (the PCM side) uses female terminals.

If you're diagnosing a bad fuel injector, one of the easiest tests you can perform is a resistance test with a multimeter. I've written a complete step-by-step tutorial that shows you exactly how to do it, and you can find it here.

FUEL INJECTOR TESTS: How To Test The Fuel Injectors (1994-1999 3.1L V6 Buick Century).
