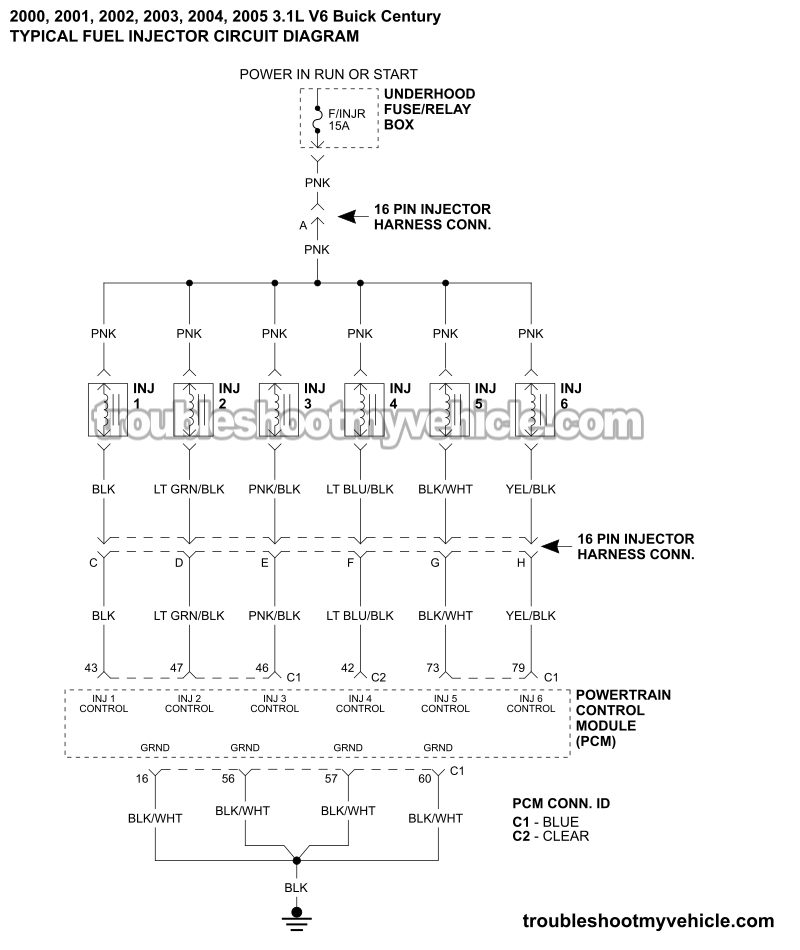

Fuel Injector Circuit Wiring Diagram (2000-2005 3.1L V6 Buick Century)

APPLIES TO: This fuel injector circuit wiring diagram applies to the following vehicles:

• 3.1L V6 Buick Century: 2000, 2001, 2002, 2003, 2004, 2005.

16 Pin Fuel Injector Harness Connector Pinout

LOCATION: The 16-Pin Fuel Injector Harness Connector is located behind the alternator.

Pin	Color	Desc
A	PNK	Ignition 12 Volts (Fuel Injectors)
B	YEL	ECT Sensor Signal
C	BLK	Fuel Injector #1 Control
D	LT GRN/BLK	Fuel Injector #2 Control
E	PNK/BLK	Fuel Injector #3 Control
F	LT BLU/BLK	Fuel Injector #4 Control
G	BLK/WHT	Fuel Injector #5 Control
H	YEL/BLK	Fuel Injector #6 Control
J	--	NOT USED
K	GRY	MAP Sensor 5V Feed
L	GRN/BLK	MAP Sensor Ground
M	LT GRN	MAP Sensor Signal
N	RED/WHT	CMP Sensor 12V Feed
P	BLK	CMP Sensor Ground
R	BRN/WHT	CMP Sensor Signal
S	--	NOT USED

Fuel Injector Basics

The 2000-2005 3.1L V6 Buick Century comes with a super convenient access point for testing the fuel injectors, even though they're located underneath the intake manifold plenum. This access point is the 16-pin fuel injector wiring harness connector, which is located behind the alternator.

From this connector, we can perform all sorts of electrical tests on the fuel injectors without having to remove the intake manifold plenum. We might eventually have to remove it, but to begin our diagnostic, we can perform all of our basic electrical tests right at this 16-pin connector.

One thing to keep in mind is that all of our fuel injector tests are done on the connector with the male terminals, which is the fuel injector harness side. The engine wiring harness side, which is the PCM side, has the female terminals.

If you've got a cylinder misfire on your hands and you're wanting to find out if a bad fuel injector is causing it, one of the easiest tests you can perform is a fuel injector resistance test. In the following tutorial, I'll show you how to do it step by step:

FUEL INJECTOR TESTS: How To Test The Fuel Injectors (2000-2005 3.1L V6 Buick Century).
