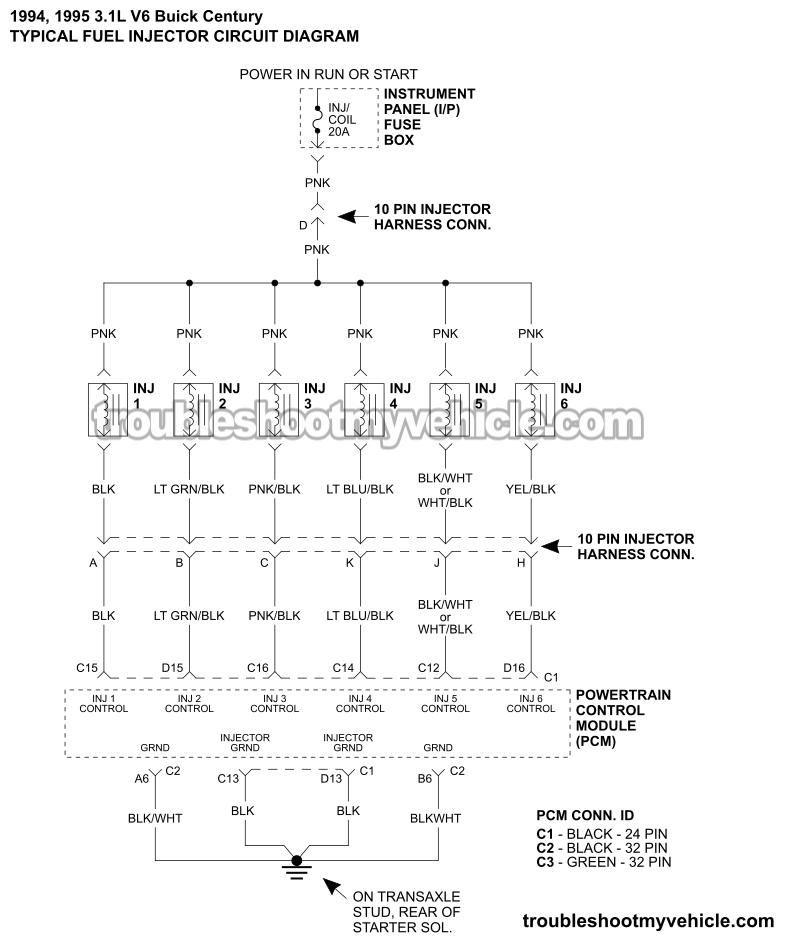

Fuel Injector Circuit Wiring Diagram (1994-1995 3.1L V6 Buick Century)

APPLIES TO: This fuel injector circuit wiring diagram applies to the following vehicles:

• 3.1L V6 Buick Century: 1994, 1995.

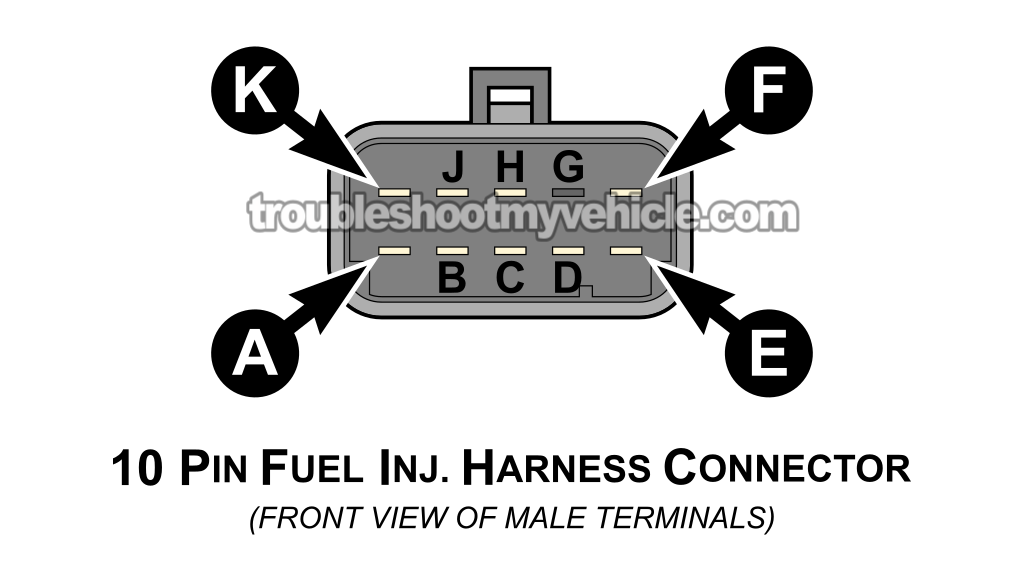

10 Pin Fuel Injector Harness Connector Pinout

LOCATION: The 10-Pin Fuel Injector Harness Connector is located on top of the valve cover facing the radiator.

Pin	Color	Desc
A	BLK	Fuel Injector #1 Control
B	LT GRN/BLK	Fuel Injector #2 Control
C	PNK/BLK	Fuel Injector #3 Control
D	PNK	Ignition 12 Volts
E	YEL	ECT Sensor Signal
F	BLK	ECT Sensor Return
G	--	NOT USED
H	YEL/BLK	Fuel Injector #6 Control
J	BLK/WHT	Fuel Injector #5 Control
K	LT BLU/BLK	Fuel Injector #4 Control

Fuel Injector Basics

The fuel injectors on the 1994-1995 3.1L V6 Buick Century are located underneath the intake manifold plenum, which kind of complicates life a bit when it comes to testing them.

The good news is that these engines come equipped with a 10-pin fuel injector wiring harness connector that's mounted on top of the front valve cover (the one closest to the radiator).

This connector gives us a convenient access point to all six fuel injector circuits, allowing us to test the injectors without having to remove the intake manifold plenum.

One thing to keep in mind is that the fuel injector harness side of the connector (the side that goes to the injectors) has male terminals. The engine wiring harness side (the PCM side) uses female terminals.

If you're diagnosing a fuel injector problem, the first test I recommend is checking the injector's internal resistance with a multimeter. I've written a complete step-by-step tutorial that walks you through the entire process, and you can find it here:

FUEL INJECTOR TESTS: How To Test The Fuel Injectors (1994-1999 3.1L V6 Buick Century).
