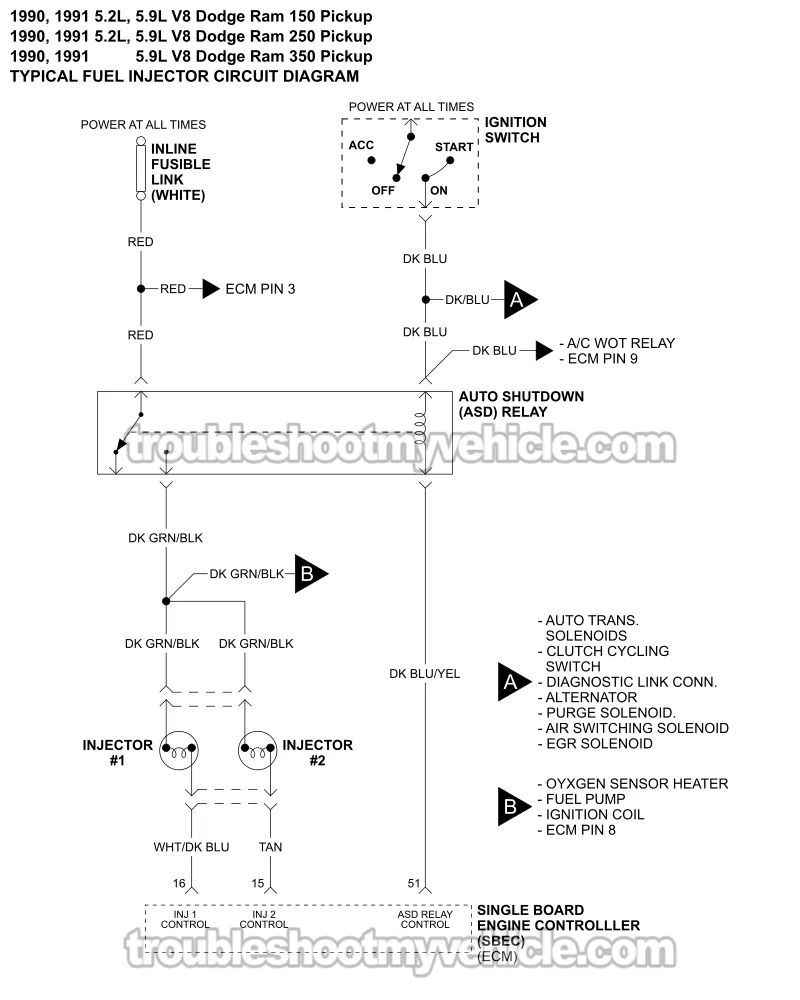

Fuel Injector Circuit Wiring Diagram (1990-1991 5.2L, 5.9L V8 Dodge Ram Pickup)

APPLIES TO: This fuel injector circuit wiring diagram applies to the following vehicles:

• 5.2L, 5.9L V8 Dodge Ram 150 Pickup: 1990, 1991.
• 5.2L, 5.9L V8 Dodge Ram 250 Pickup: 1990, 1991.
• 5.2L, 5.9L V8 Dodge Ram 350 Pickup: 1990, 1991.

FUEL INJECTOR TESTS:

• How To Test The TBI Fuel Injectors (1989-1991 5.2L, 5.9L V8 Dodge Ram Pickup).
