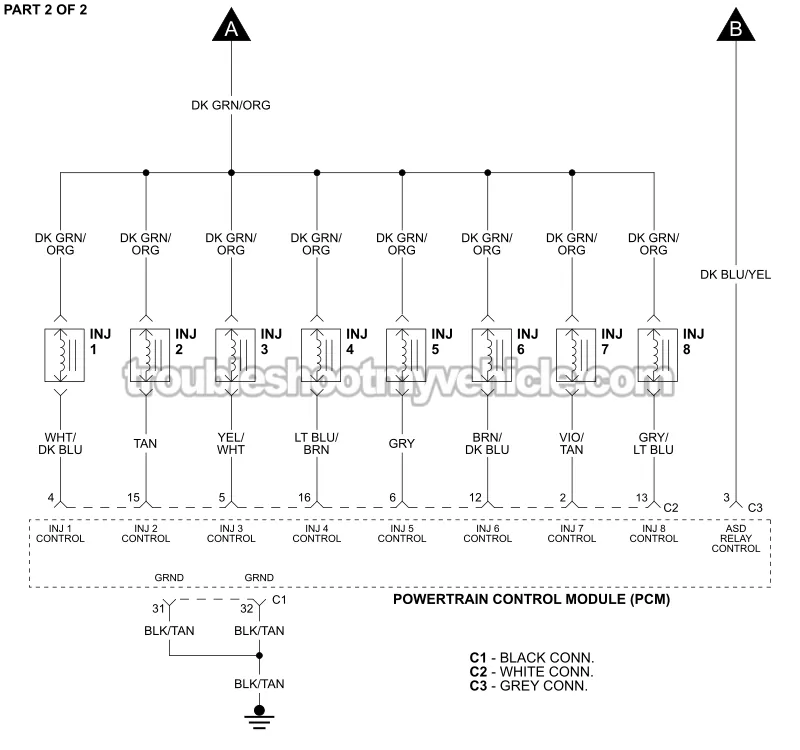

DIAGRAM 1: 5.9L 1500 Pickups
APPLIES TO: This simplified fuel injector circuit wiring diagram applies to the following vehicles:
- 5.9L V8 Dodge Ram 1500 Pickup: 2002.

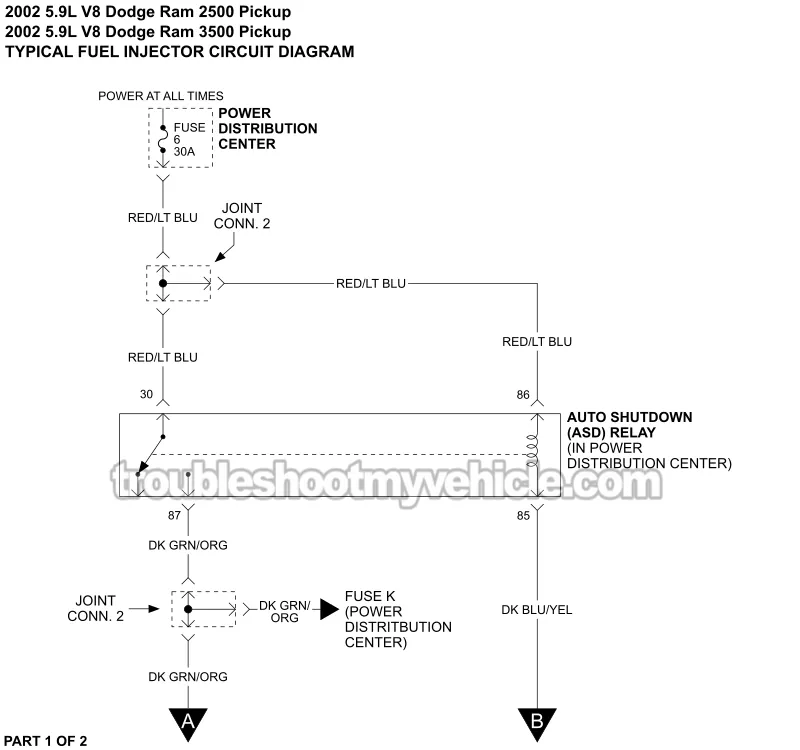

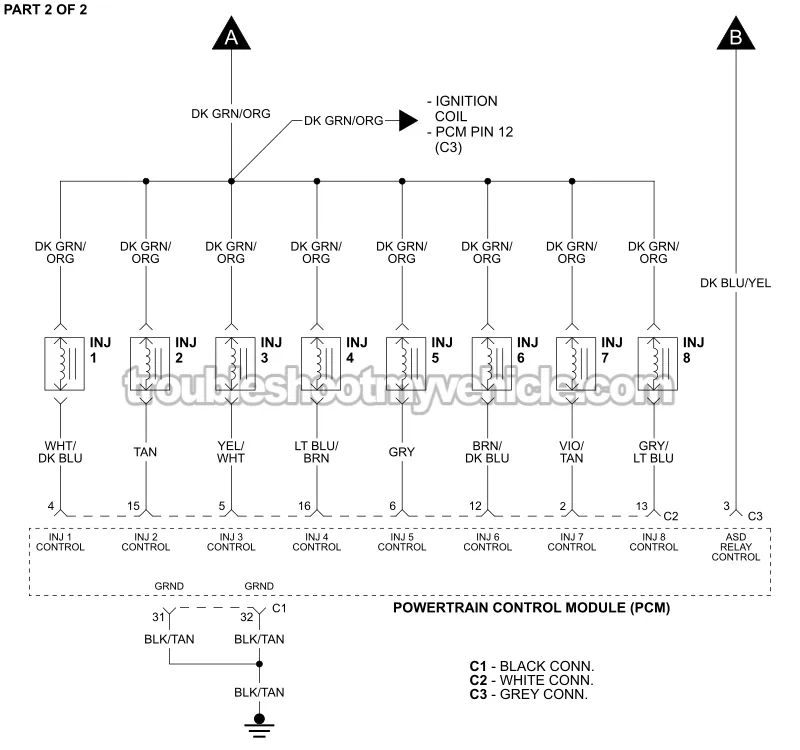

DIAGRAM 2: 5.9L 2500 And 3500 Pickups
APPLIES TO: This simplified fuel injector circuit wiring diagram applies to the following vehicles:
- 5.9L V8 Dodge Ram 2500 Pickup: 2002.
- 5.9L V8 Dodge Ram 3500 Pickup: 2002.
Fuel Injector Tests
The following tutorial will help you test the fuel injectors:
- How To Test The Fuel Injectors (2000-2003 5.2L, 5.9L V8 Dodge Ram Pickup).
- How To Check Fuel Injector Spray (1992-2003 5.2L, 5.9L V8 Dodge Ram Pickup).
