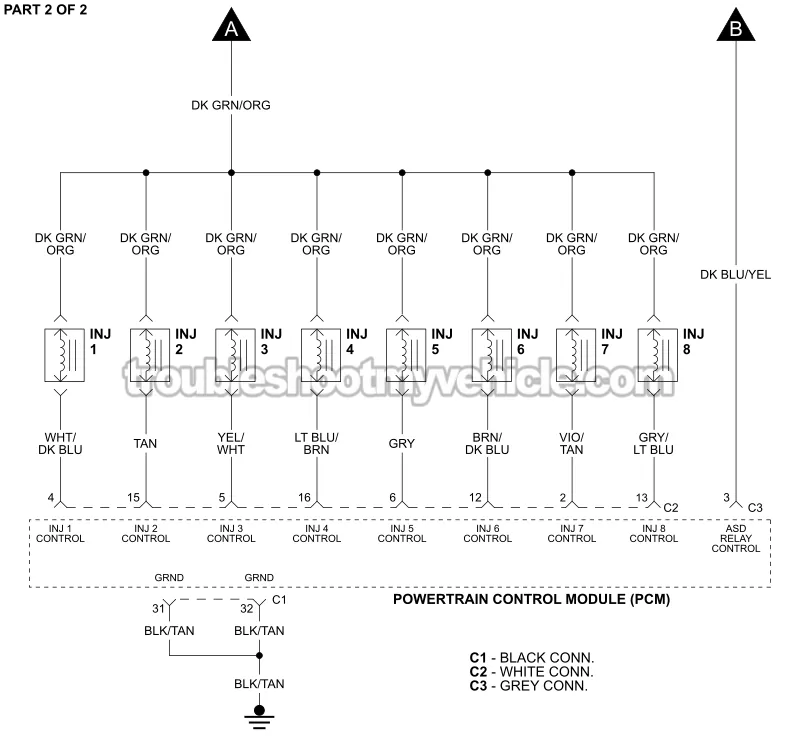

Fuel Injector Circuit Wiring Diagram (2003 5.9L V8 Dodge Ram Pickup)

APPLIES TO: This simplified fuel injector circuit wiring diagram applies to the following vehicles:

• 5.9L V8 Dodge Ram 1500 Pickup: 2003.
