DIAGRAM 1: 1992 5.2L V8 Engine
APPLIES TO: This fuel injector wiring diagram applies to the following vehicles:
- 5.2L V8 Dodge Ram 150 Pickup: 1992.
- 5.2L V8 Dodge Ram 250 Pickup: 1992.
FUEL INJECTOR TESTS:
- How To Test The Fuel Injectors (1992-1999 5.2L, 5.9L V8 Dodge Ram Pickup).
- How To Check Fuel Injector Spray (1992-2003 5.2L, 5.9L V8 Dodge Ram Pickup).

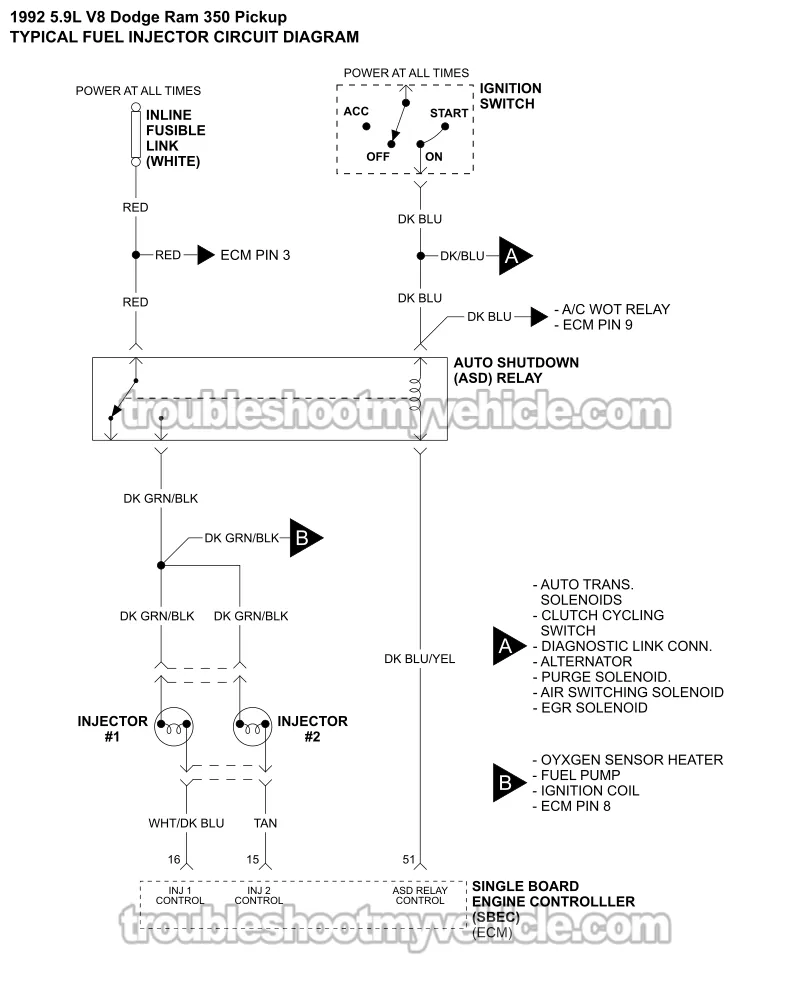

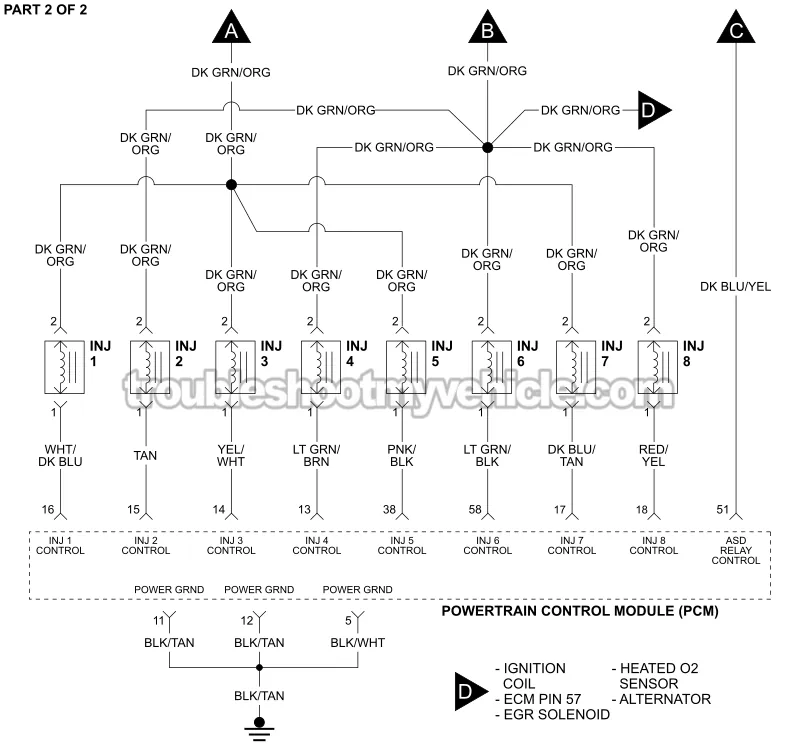

DIAGRAM 2: 1992 5.9L V8 Engine
APPLIES TO: This fuel injector circuit wiring diagram applies to the following vehicles:
- 5.9L V8 Dodge Ram 150 Pickup: 1992.
- 5.9L V8 Dodge Ram 250 Pickup: 1992.
- 5.9L V8 Dodge Ram 350 Pickup: 1992.
Fuel Injector Wiring Diagrams
Here's a complete list of fuel injector circuit wiring diagrams for the V8 Dodge Ram pickup:
- Fuel Injector Circuit Wiring Diagram (1989 5.2L, 5.9L V8 Dodge Ram Pickup).
- Fuel Injector Circuit Wiring Diagram (1990-1991 5.2L, 5.9L V8 Dodge Ram Pickup).
- Fuel Injector Wiring Diagram (1993 5.2L, 5.9L V8 Dodge Ram Pickup).
- Fuel Injector Circuit Wiring Diagram (1994-1995 5.2L, 5.9L V8 Dodge Ram Pickup).
- Fuel Injector Circuit Wiring Diagram (1996-1997 5.2L, 5.9L V8 Dodge Ram Pickup).
- Fuel Injector Circuit Wiring Diagram (1998-2000 5.2L, 5.9L V8 Dodge Ram Pickup).
- Fuel Injector Circuit Wiring Diagram (2001 5.2L, 5.9L V8 Dodge Pickup).
- Fuel Injector Circuit Wiring Diagram (2002 5.9L V8 Dodge Ram Pickup).
- Fuel Injector Circuit Wiring Diagram (2003 5.9L V8 Dodge Ram Pickup).
