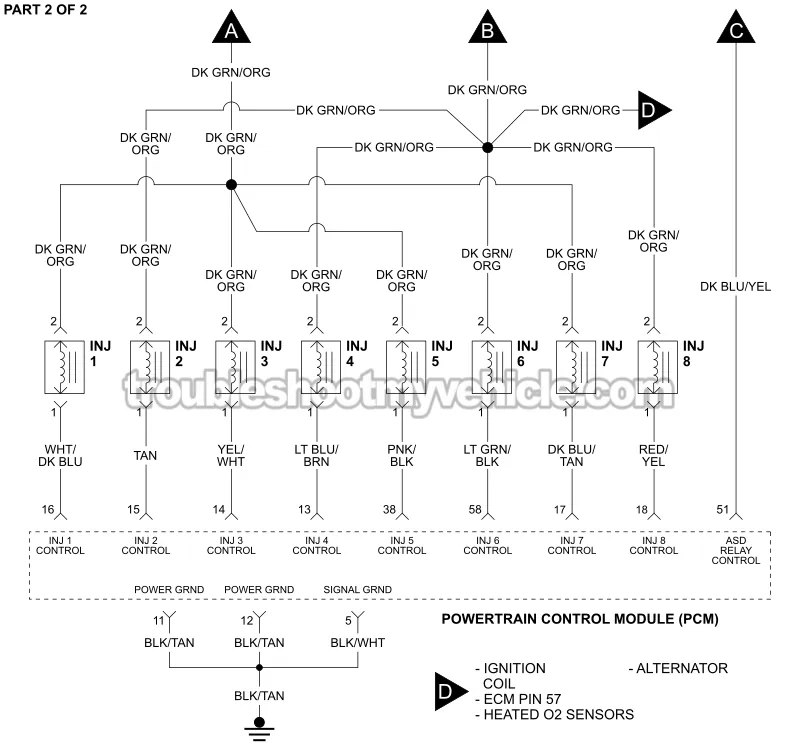

Fuel Injector Wiring Diagram (1993 5.2L, 5.9L V8 Dodge Ram Pickup)

APPLIES TO: This fuel injector circuit wiring diagram applies to the following vehicles:

• 5.2L, 5.9L V8 Dodge Ram 150 Pickup: 1993.
• 5.2L, 5.9L V8 Dodge Ram 250 Pickup: 1993.
• 5.9L V8 Dodge Ram 350 Pickup: 1993.

FUEL INJECTOR TEST:

• How To Test The Fuel Injectors (1992-1999 5.2L, 5.9L V8 Dodge Ram Pickup).
• How To Check Fuel Injector Spray (1992-2003 5.2L, 5.9L V8 Dodge Ram Pickup).

Fuel Injector Circuit Wiring Diagrams

Here's a complete list of fuel injector circuit wiring diagrams for the V8 Dodge Ram pickup:

• Fuel Injector Circuit Wiring Diagram (1989 5.2L, 5.9L V8 Dodge Ram Pickup).
• Fuel Injector Circuit Wiring Diagram (1990-1991 5.2L, 5.9L V8 Dodge Ram Pickup).
• Fuel Injector Wiring Diagram (1992 5.2L, 5.9L V8 Dodge Ram Pickup).
• Fuel Injector Circuit Wiring Diagram (1994-1995 5.2L, 5.9L V8 Dodge Ram Pickup).
• Fuel Injector Circuit Wiring Diagram (1996-1997 5.2L, 5.9L V8 Dodge Ram Pickup).
• Fuel Injector Circuit Wiring Diagram (1998-2000 5.2L, 5.9L V8 Dodge Ram Pickup).
• Fuel Injector Circuit Wiring Diagram (2001 5.2L, 5.9L V8 Dodge Pickup).
• Fuel Injector Circuit Wiring Diagram (2002 5.9L V8 Dodge Ram Pickup).
• Fuel Injector Circuit Wiring Diagram (2003 5.9L V8 Dodge Ram Pickup).
