Fuel Injector Circuit Wiring Diagram (1994-1995 5.2L, 5.9L V8 Dodge Ram Pickup)

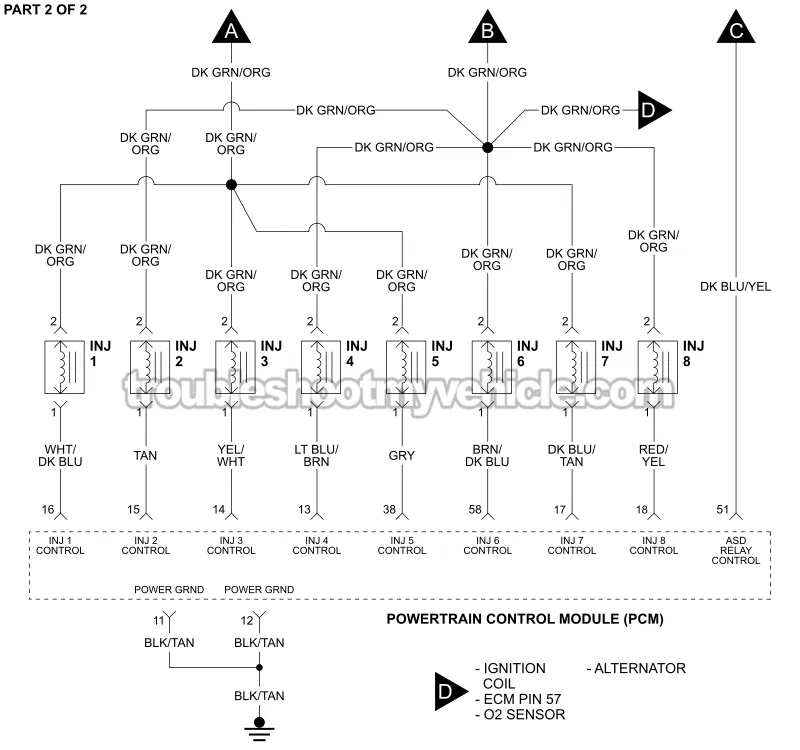

APPLIES TO: This simplified fuel injector circuit wiring diagram applies to the following vehicles:

• 5.2L, 5.9L V8 Dodge Ram 1500 Pickup: 1994, 1995.
• 5.2L, 5.9L V8 Dodge Ram 2500 Pickup: 1994, 1995.
• 5.9L V8 Dodge Ram 3500 Pickup: 1994, 1995.

FUEL INJECTOR TEST:

• How To Test The Fuel Injectors (1992-1999 5.2L, 5.9L V8 Dodge Ram Pickup).
• How To Check Fuel Injector Spray (1992-2003 5.2L, 5.9L V8 Dodge Ram Pickup).

Fuel Injector Circuit Wiring Diagrams

Here's a complete list of fuel injector circuit wiring diagrams for the V8 Dodge Ram pickup:
