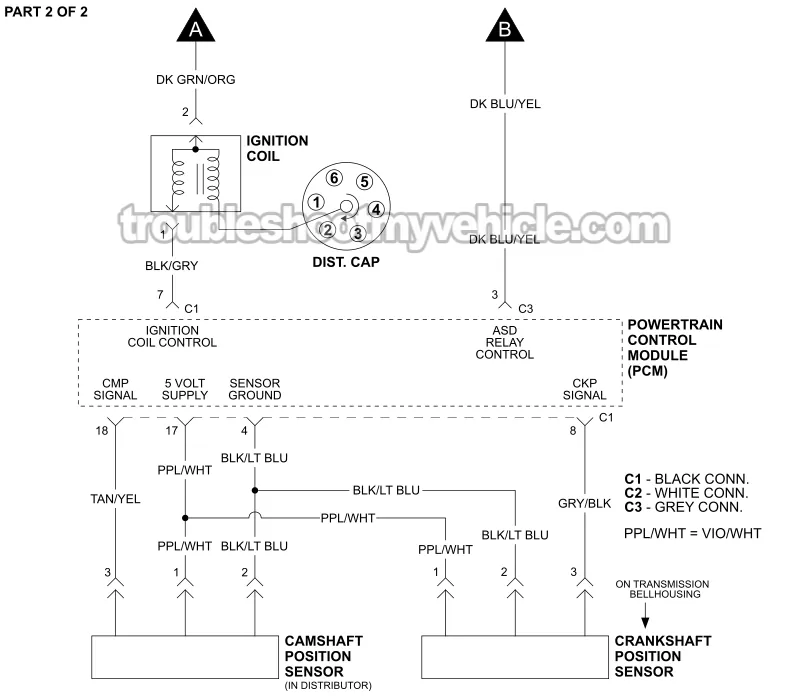

This simplified ignition system wiring diagram applies to the following vehicles:
- 3.9L V6 Dodge Ram 1500 Pickup: 1996, 1997.
This typical circuit diagram includes the following circuits: ignition coil, crankshaft position (CKP) sensor, and camshaft position (CMP) sensor.
The camshaft position sensor is also known as the distributor pickup coil.
