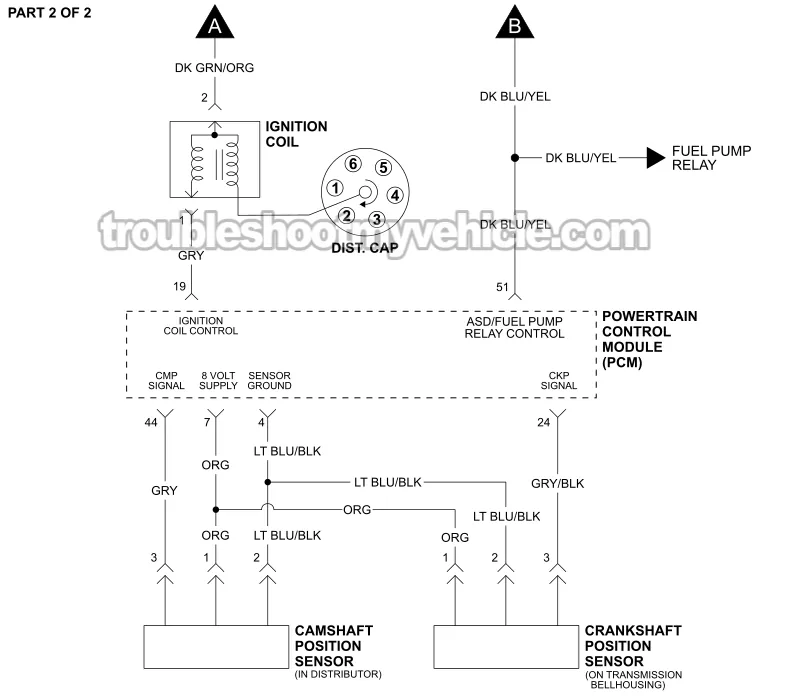

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:
- 3.9L V6 Dodge 150 Pickup: 1992, 1993.
- 3.9L V6 Dodge 250 Pickup: 1992, 1993.
This wiring diagram includes the following circuits:
- Ignition coil.
- Crankshaft position (CKP) sensor.
- Camshaft position (CMP) sensor (distributor pickup coil).
The camshaft position sensor is also known as the distributor pickup coil.
