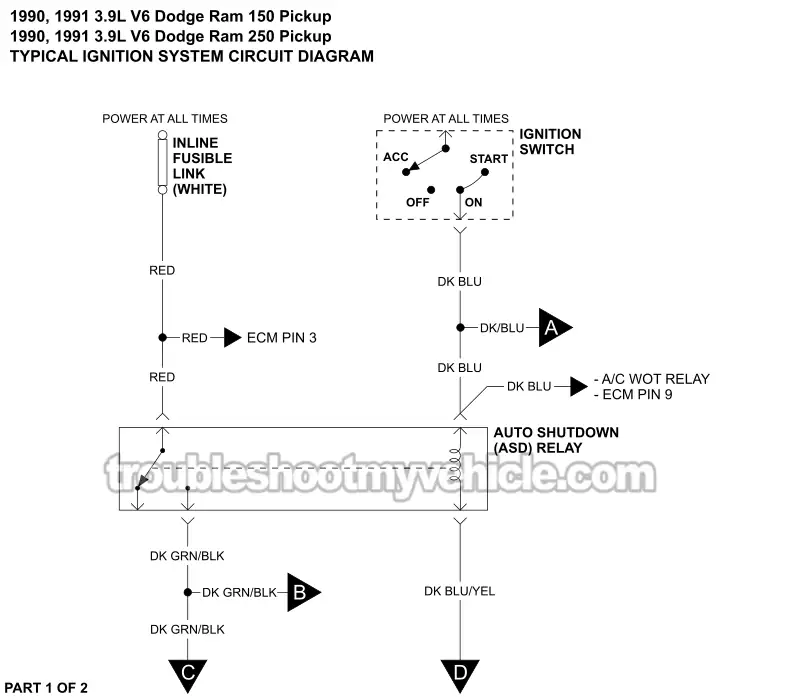

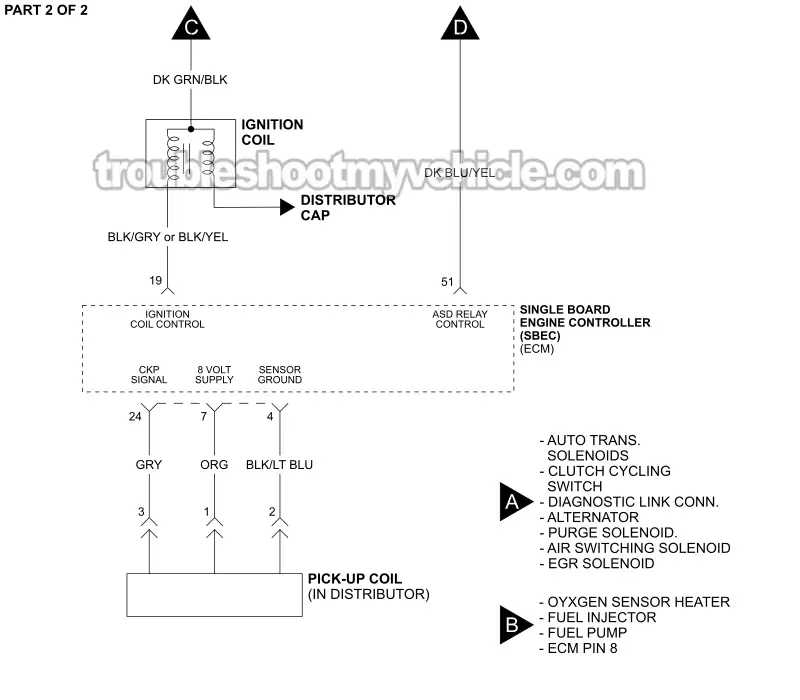

Ignition System Circuit Wiring Diagram (1990-1991 3.9L V6 Dodge Ram Pickup)

APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:

• 3.9L V6 Dodge Ram 150 Pickup: 1990, 1991.
• 3.9L V6 Dodge Ram 250 Pickup: 1990, 1991.

IGNITION SYSTEM TESTS:

• How To Test The Distributor Pickup Coil (1989-1991 3.9L V6 Dodge Ram Pickup).
