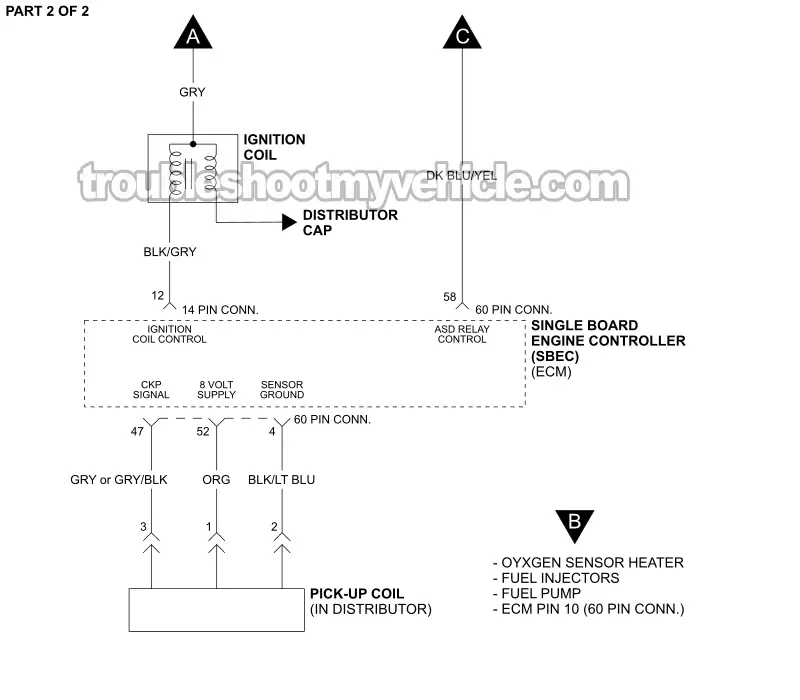

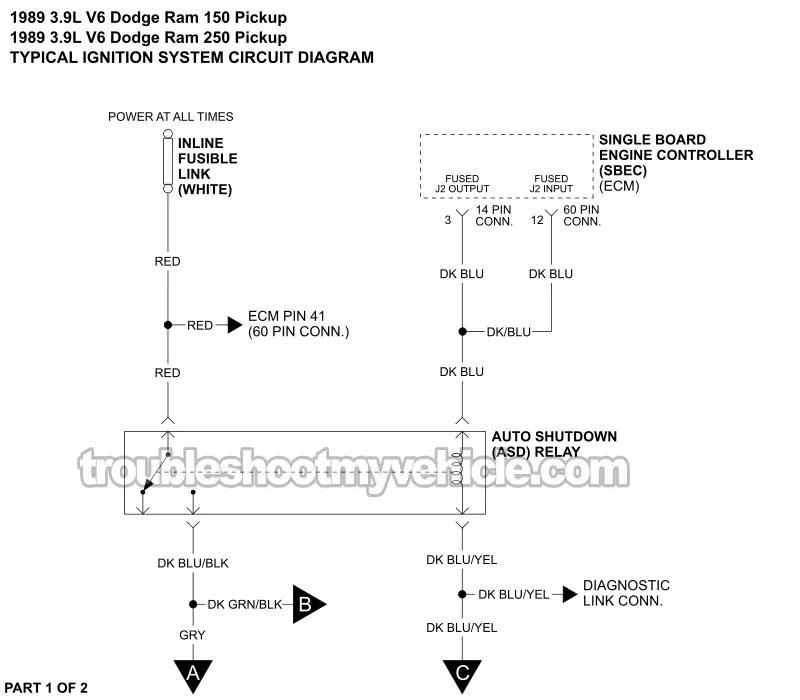

Ignition System Circuit Wiring Diagram (1989 3.9L V6 Dodge Ram Pickup)

APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:

• 3.9L V6 Dodge Ram 150 Pickup: 1989.
• 3.9L V6 Dodge Ram 250 Pickup: 1989.

IGNITION SYSTEM TESTS:

• How To Test The Distributor Pickup Coil (1989-1991 3.9L V6 Dodge Ram Pickup).

More 3.9L V6 Dodge Ram Pickup Tutorials

You can find a complete list of tutorials and wiring diagrams in this index:

• 3.9L V6 Dodge Ram Pickup Index of Articles.

Here's a sample of the tutorials you'll find in the index:

• Throttle Body Temp Sensor Tests (1989-1991 3.9L V6 Dodge Ram Pickup).
• How To Test The Fuel Pump (1989-1991 3.9L V6 Dodge Ram Pickup).
• How To Test The Engine Compression (1989-2001 3.9L V6 Dodge Ram Pickup).
• How To Test The TPS (1989-1990 3.9L V6 Dodge Ram Pickup).
