Ignition System Wiring Diagram (1994-1995 3.9L V6 Dodge Ram 1500 And 2500 Pickups)

PART 1 -Ignition System Wiring Diagram. 1994, 1995 3.9L V6 Ram 1500 Pickup And Ram 2500 Pickup PART 2 -Ignition System Wiring Diagram. 1994, 1995 3.9L V6 Ram 1500 Pickup And Ram 2500 Pickup

This simplified ignition system wiring diagram applies to the following vehicles:

  • 3.9L V6 Dodge Ram 1500 Pickup: 1994, 1995.
  • 3.9L V6 Dodge Ram 2500 Pickup: 1994, 1995.

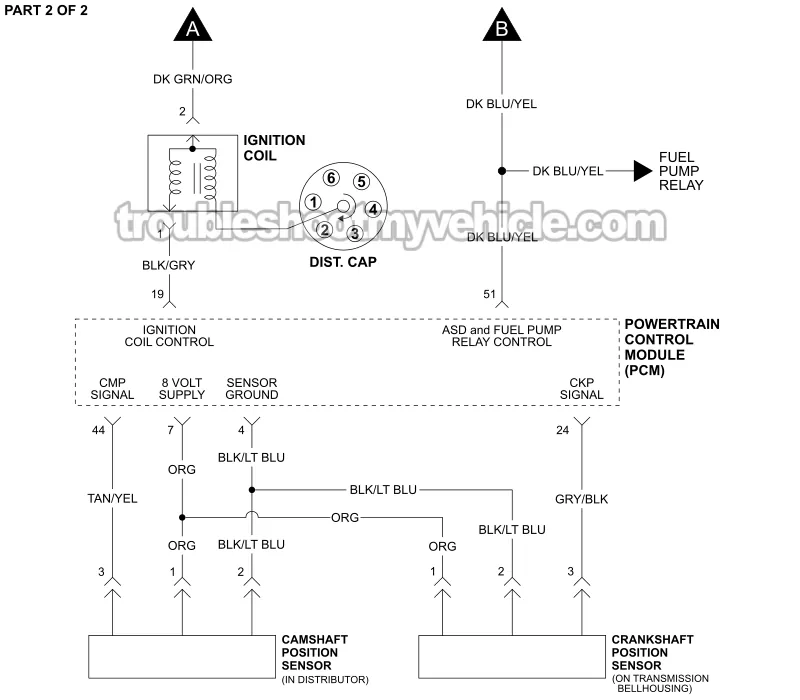

This typical circuit diagram includes the following circuits: ignition coil, crankshaft position (CKP) sensor, and camshaft position (CMP) sensor.

The camshaft position sensor is also known as the distributor pickup coil.
