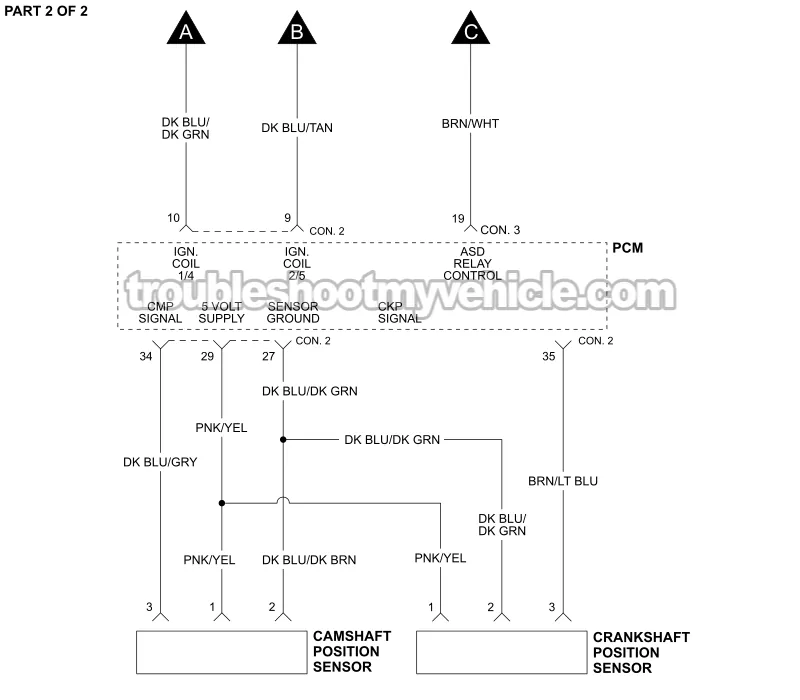

Ignition System Wiring Diagram (2003-2007 2.4L Chrysler And Dodge Minivan)

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:

• 2.4L Chrysler Voyager: 2003.
• 2.4L Dodge Caravan: 2003, 2004, 2005, 2006, 2007.

This circuit diagram includes the following circuits:

• Ignition coil pack.
• Camshaft position (CMP) sensor.
• Crankshaft position (CKP) sensor.
