Ignition System Wiring Diagram (2001-2002 2.4L Chrysler And Dodge Minivan)

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:

• 2.4L Chrysler Voyager: 2001, 2002.
• 2.4L Dodge Caravan: 2001, 2002.

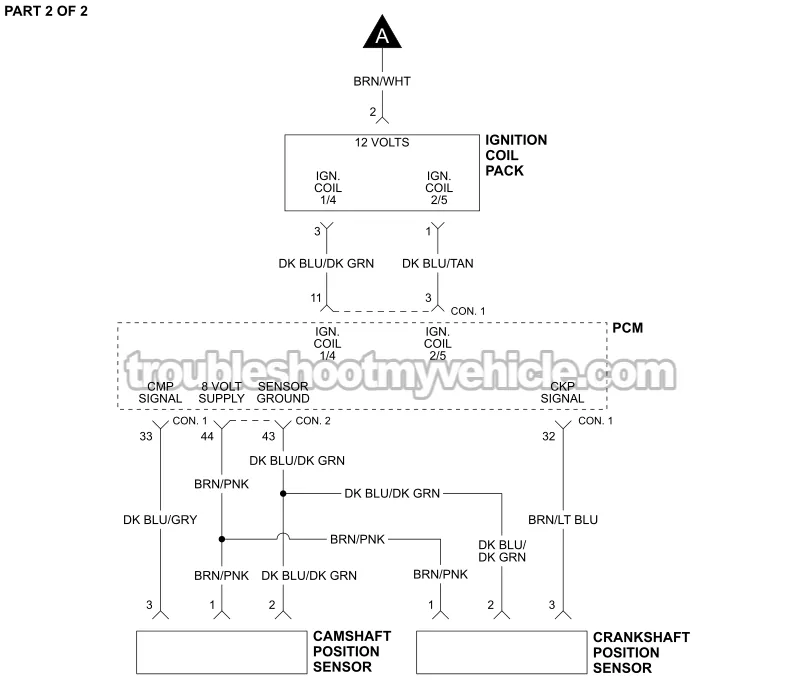

This circuit diagram includes the following circuits:

• Ignition coil pack.
• Camshaft position (CMP) sensor.
• Crankshaft position (CKP) sensor.

IGNITION SYSTEM TESTS:

• How To Test The CMP Sensor -P0340 (2001-2002 2.4L Chrysler And Dodge Minivan).
• Testing The Crankshaft Position Sensor (1996-2002 2.4L Caravan, Grand Caravan, Voyager, Grand Voyager).
• How To Test The Ignition Coil (1996-2007 2.4L Caravan, Grand Caravan, Voyager, Grand Voyager).
