Ignition System Wiring Diagram (1998-1999 2.4L Dodge And Plymouth Minivan)

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:

• 2.4L Dodge Caravan: 1998, 1999.
• 2.4L Dodge Grand Caravan: 1998.
• 2.4L Plymouth Voyager: 1998, 1999.
• 2.4L Plymouth Grand Voyager: 1998.

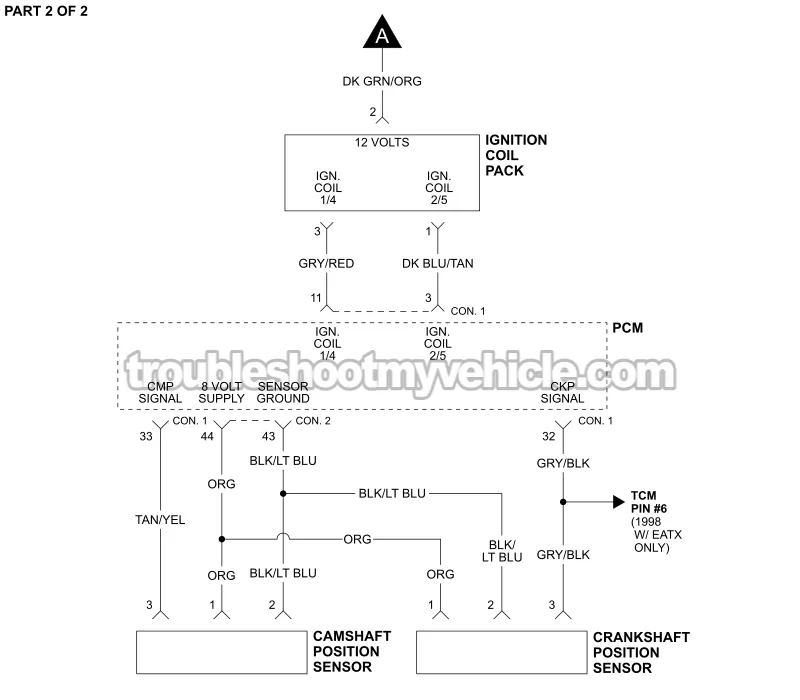

This circuit diagram includes the following circuits:

• Ignition coil pack.
• Camshaft position (CMP) sensor.
• Crankshaft position (CKP) sensor.

IGNITION SYSTEM TESTS:

• How To Test The CMP Sensor -P0340 (1996-2000 2.4L Dodge And Plymouth Minivan).
• Testing The Crankshaft Position Sensor (1996-2002 2.4L Caravan, Grand Caravan, Voyager, Grand Voyager).
• How To Test The Ignition Coil (1996-2007 2.4L Caravan, Grand Caravan, Voyager, Grand Voyager).

CYLINDER MISFIRE DIAGNOSTICS:

• How To Troubleshoot A Cylinder Misfire (1996-2007 2.4L Chrysler, Dodge, And Plymouth Minivan).
• Common Causes Of Spark Plug Failure (1996-2007 2.4L Chrysler, Dodge, And Plymouth Minivan).

Ignition System Wiring Diagrams

• Ignition System Wiring Diagram (1996-1997 2.4L Dodge And Plymouth Minivan).
• Ignition System Wiring Diagram (2000 2.4L Dodge And Plymouth Minivan).
• Ignition System Wiring Diagram (2001-2002 2.4L Chrysler And Dodge Minivan).
• Ignition System Wiring Diagram (2003-2007 2.4L Chrysler And Dodge Minivan).
