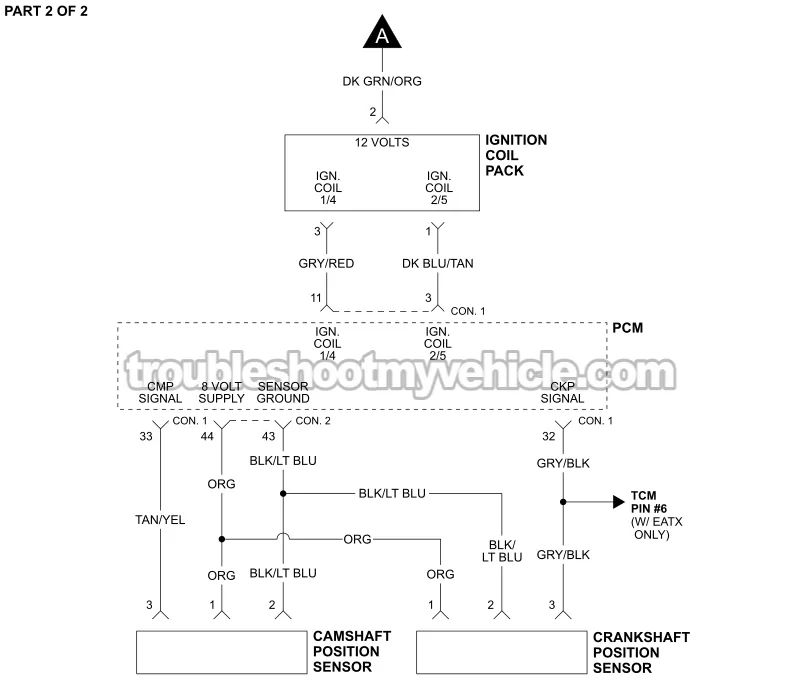

Ignition System Wiring Diagram (2000 2.4L Dodge And Plymouth Minivan)

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:

• 2.4L Dodge Caravan: 2000.
• 2.4L Plymouth Voyager: 2000.

This circuit diagram includes the following circuits:

• Ignition coil pack.
• Camshaft position (CMP) sensor.
• Crankshaft position (CKP) sensor.
