Ignition System Wiring Diagram (1996-1997 1.6L Toyota Corolla)

  • By: Abraham Torres-Arredondo
  • Created: 07 February 2025
  • Updated: 05 March 2025
  • Articl Id: 1503

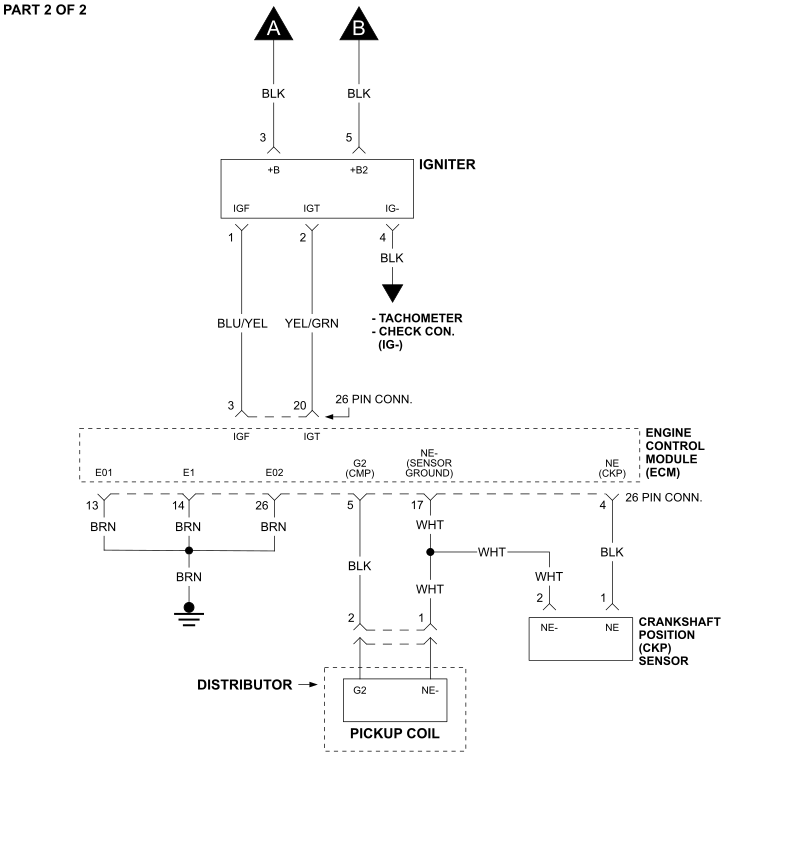

PART 1 of 2: Ignition System Circuit Wiring Diagram (1996, 1997 1.6L 4A-FE Toyota Corolla) PART 2 of 2: Ignition System Circuit Wiring Diagram (1996, 1997 1.6L 4A-FE Toyota Corolla)

APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:

  • 1.6L (4A-FE) Toyota Corolla: 1996, 1997.

This ignition system wiring diagram includes the following components:

  • Ignition Coil.
  • Igniter.
  • Distributor Pickup Coil.

Ignition System Diagnostic Tests:

Ignition System Wiring Diagrams:
