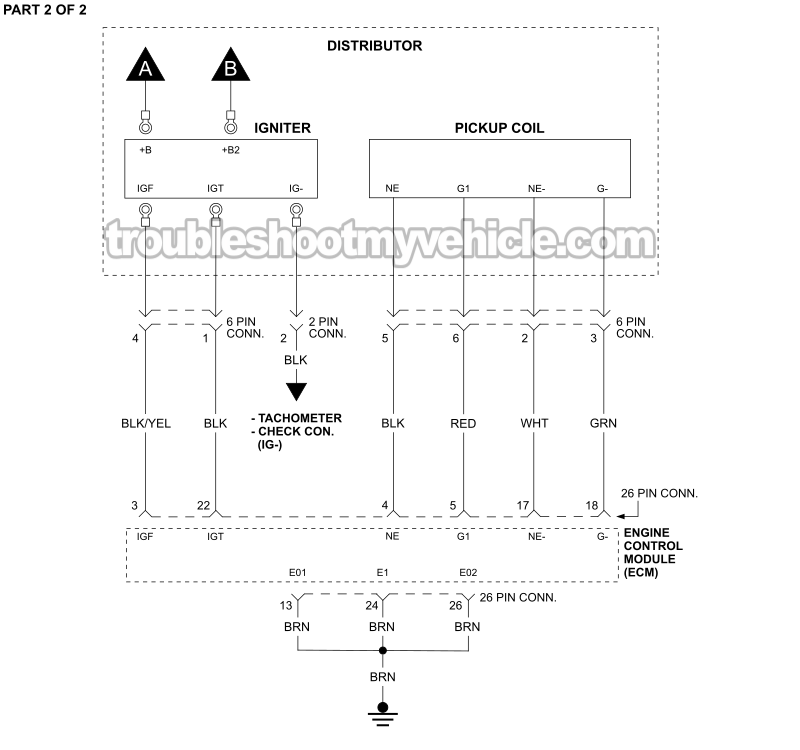

Ignition System Wiring Diagram (1993-1995 1.6L Toyota Corolla)

APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:

• 1.6L (4A-FE) Toyota Corolla: 1993, 1994, 1995.

This ignition system wiring diagram includes the following components:

• Ignition Coil.
• Igniter.
• Distributor Pickup Coil.
