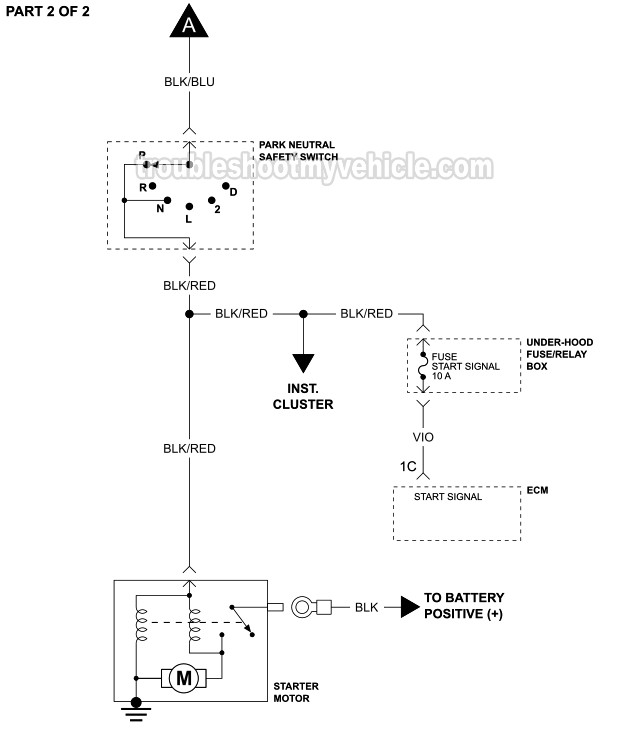

APPLIES TO: This wiring diagram applies to the following vehicles:
- 1995, 1996 1.5L Mazda Protege With Automatic Transaxle (ATX).
The wiring diagram includes the following circuits:
- Ignition switch.
- Park/neutral safety switch.
- Starter motor.
You can find the wiring diagram for the 1995-1996 1.5L Mazda Protege with automatic transmission (ATX) here:
The starter motor circuit wiring diagrams for the 1997-1998 1.5L Mazda Protege are here:
- Starter Motor Circuit Wiring Diagram (1997-1998 1.5L Mazda Protege With ATX).
- Starter Motor Circuit Wiring Diagram (1997-1998 1.5L Mazda Protege With MTX).
RELATED WIRING DIAGRAMS:
- Ignition System Wiring Diagram (1995 1.5L Mazda Protege).
- Ignition System Wiring Diagram (1996 1.5L Mazda Protege -Federal Emissions).
- Ignition System Wiring Diagram (1996 1.5L Mazda Protege -California Emissions).
More 1.5L Mazda Protege Tutorials
You can find a complete list of 1.5L Mazda Protege wiring diagrams and tutorials in this index:
Here's a small sample of the tutorials you'll find in the index:
- How To Test Engine Compression (1995-1998 1.5L Mazda Protege).
- How To Test The CMP Sensor (1996-1998 1.5L Mazda Protege).
- How To Test The TPS (1996-1998 1.5L Mazda Protege).
- How To Test The MAF Sensor (1996-1998 1.5L Mazda Protege).
