APPLIES TO: This wiring diagram applies to the following vehicles:
- 1996 1.5L Mazda Protege (With Federal Emissions).
How can you tell you if your 1.5L Mazda Protege has Federal Emissions? Two ways:
- The Federal Emissions distributor has only one connector with 7 pins (terminals/wires).
- The vehicle emissions label will indicate the vehicle conforms to U.S. EPA regulations (but nothing about California regulations).

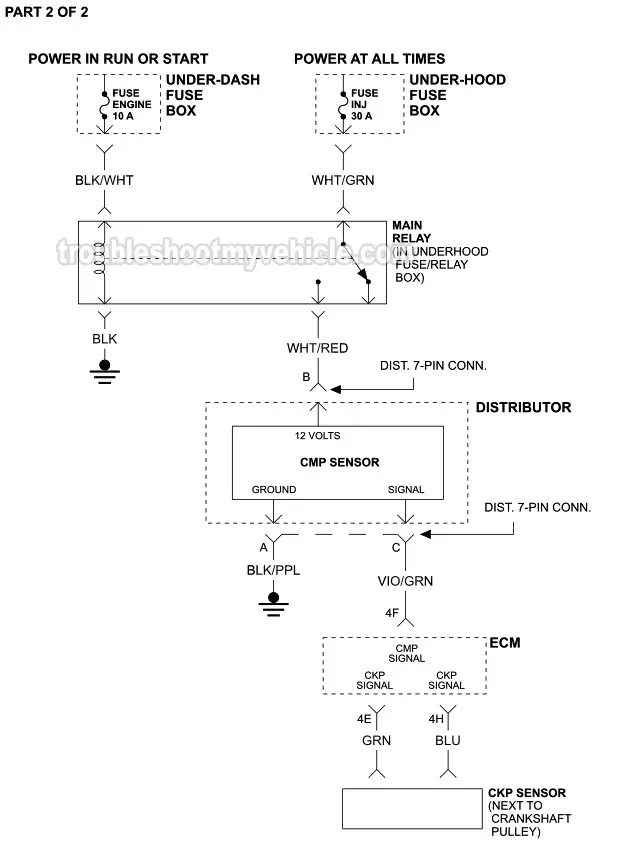

The wiring diagram includes the following circuits:
- Ignition coil.
- Ignition control module.
- Camshaft position (CMP) sensor.
- Crankshaft position (CKP) sensor.
You can find the ignition system tests here: How To Test The Ignition System (1996-1998 1.5L Mazda Protege).
You can find the CMP sensor test here: How To Test The CMP Sensor (1996-1998 1.5L Mazda Protege).
