How To Test Engine Compression (1995-1998 1.5L Mazda Protege)

How To Test Engine Compression (1995, 1996, 1997, 1998 1.5L Mazda Protege)

In this tutorial, I'm going to explain how to do a compression test and more importantly, I'm going to show you how to interpret your test results.

You'll be able to easily find out if a compression problem is causing a no-start problem or a misfire/rough idle problem on your 1.5L Mazda Protege.

In Spanish You can find this tutorial in Spanish here: Cómo Probar La Compresión Del Motor (1995-1998 1.5L Mazda Protege) (at:

APPLIES TO: This compression test tutorial applies to the following vehicles:

  • 1995, 1996, 1997, 1998 1.5L Mazda Protege.

Symptoms Of Low Or No Engine Compression

Over the years that I've been working on cars, as a professional automotive technician, I've noticed that engine compression problems usually fall into one of two types of categories.

In a nutshell, the engine compression problem will cause your 1.5L Mazda Protege to either:

  • Crank but not start due to a lack of compression on all cylinders.
  • The engine will start but run with a misfire/rough idle problem.

Here are some more specifics:

The Engine Starts But Runs With A Misfire:

  1. Also known as an engine miss, rough idle condition.
    • Usually caused by very low compression in one cylinder.
    • Is also caused by uneven engine compression that varies more than 15% across all 4 cylinders.
  2. Check engine light on with misfire codes (if your vehicle is OBD II equipped):
    • P0300 Random Cylinder Misfire.
    • P0301 Cylinder #1 Misfire.
    • P0302 Cylinder #2 Misfire.
    • P0303 Cylinder #3 Misfire.
    • P0304 Cylinder #4 Misfire.
  3. Bad gas mileage.
    • This is caused by the simple fact that the engine is NOT running with all 4 cylinders.
  4. Engine pollutes more.
    • Low engine compression will cause the air/fuel mixture to not burn correctly. This means that unburned fuel escapes into the exhaust. If the cylinder has no compression, all that raw fuel is being sent into the exhaust.

The Engine Cranks But Will Not Start:

This usually is caused by having 2 or all 4 cylinders with no compression. When this happens, you'll see:

  1. The engine cranks very fast.
    • This fast cranking speed is very noticeable.
  2. The ignition system is sparking all 4 spark plugs.
    • This tells you that the no-start condition is not caused by a fault in the ignition system.
  3. The fuel injectors spray fuel.
    • You can confirm this with a Noid light test.
    • Also, you can confirm this, although indirectly, by removing the spark plugs and checking to see if they are fuel soaked (fuel fouled).
  4. Fuel pump is working and providing pressure.
  5. The most common causes of no compression on 2 or all 4 cylinders are:
    • Blown head gasket.
    • Broken timing belt.
    • Engine threw a rod.

OK, let's get testing.

Which Compression Tester Should I Buy?

There are lot of engine compression testers to choose from and many places to buy them. I'm gonna' make two recommendations to you:

1) Which one to buy:  The engine compression tester that I have always used is the Actron CP7827 Compression Tester Kit. My only complaint about this engine compression tester is that it does not come with a case to store it in.

2) Where to buy:  You can buy an engine compression tester just about anywhere, but you'll end up paying more for it (especially at your local auto parts store). The above links will help you comparison shop. I think you'll agree it's the better way to save money on the compression tester!

TEST 1: ‘Dry’ Engine Compression Test

How To Do An Engine Compression Test (1995, 1996, 1997, 1998 1.5L Mazda Protege)

To get the most accurate test result, from your engine compression test, it's important that you test the compression of all four cylinders.

Cool thing about the 1.5L Mazda Protege engine, is that accessing and removing the spark plugs is a piece of cake.

If you don't have a compression tester, you can run down to your local auto parts store and buy rent one from them. Or if you'd like to save a couple of bucks on its purchase, check out the links in the subheading above.

IMPORTANT: Never remove the spark plugs from a hot engine! If the engine has been running for any length of time, let it cool down completely before removing the spark plugs.

IMPORTANT: You'll be working around a cranking engine, so be careful and stay alert at all times. Think safety all of the time!

This is what you'll need to do:

  1. 1

    Disable the fuel system by removing the fuel pump relay.

    This will prevent fuel from being injected into the cylinders as you crank the engine.

  2. 2

    Disable the ignition system by disconnecting the distributor from its electrical connector(s).

    Don't overlook this step, since disconnecting the distributor will prevent the ignition coil from firing spark during the test.

  3. 3

    Remove all four spark plug wires and remove all four spark plugs.

    I recommend marking the spark plug wires before removing them so you'll know where they go when you put them back on.

    As your taking them out, be careful and don't drop any of them on the floor, or you could cause the spark plugs ceramic insulator to break, and this will cause a misfire!

  4. 4

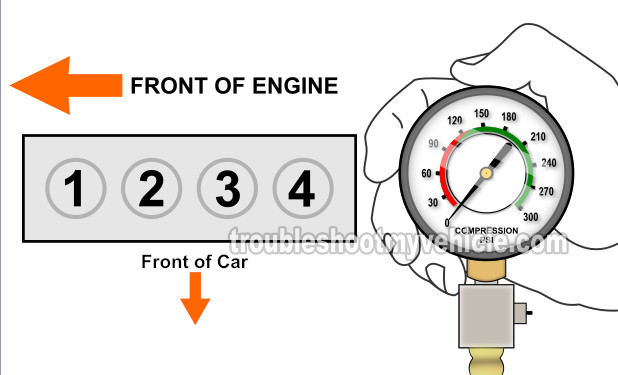

    Thread the engine compression gauge into the spark plug hole for the number 1 engine cylinder (this is the spark plug hole closest to the drive belt).

    IMPORTANT: Hand tighten the compression gauge only! Do not use any type of tool to get it tight.

  5. 5

    When the tester is set up, ask your helper to crank the engine. Your job is to keep your eye on the compression tester's gauge.

  6. 6

    Once the needle on the gauge stops climbing, have your helper stop cranking the engine.

  7. 7

    Write down the compression value on a piece of paper.

    Include the number of the cylinder this reading belongs to.

  8. 8

    Repeat steps 3 thru' 7 on the remaining cylinders.

Let's take a look at what your test results mean:

CASE 1: Low or no compression in 2 or all 4 cylinders. This test result indicates a serious internal problem.

The most common issues would be:

  • Blown head gasket.
  • Broken timing chain.
  • Engine threw a rod.

CASE 2: Low compression in one or more cylinders. To a certain point, it's normal for the compression to vary a little between cylinders (as the engine accumulates thousands of miles).

But if these values vary too much, then you're gonna' have a bonafide misfire on your hands.

The next step is to do some math to find out if this low compression value is within a normal parameter or not. Go to: Interpreting Your Compression Test Results.
