![1995 1.5L Mazda Protege Ignition Circuit Wiring Diagram 1995 1.5L Mazda Protege Ignition Circuit Wiring Diagram](/images/articles-900-999/960/964/circuit-diagram-1.jpg)

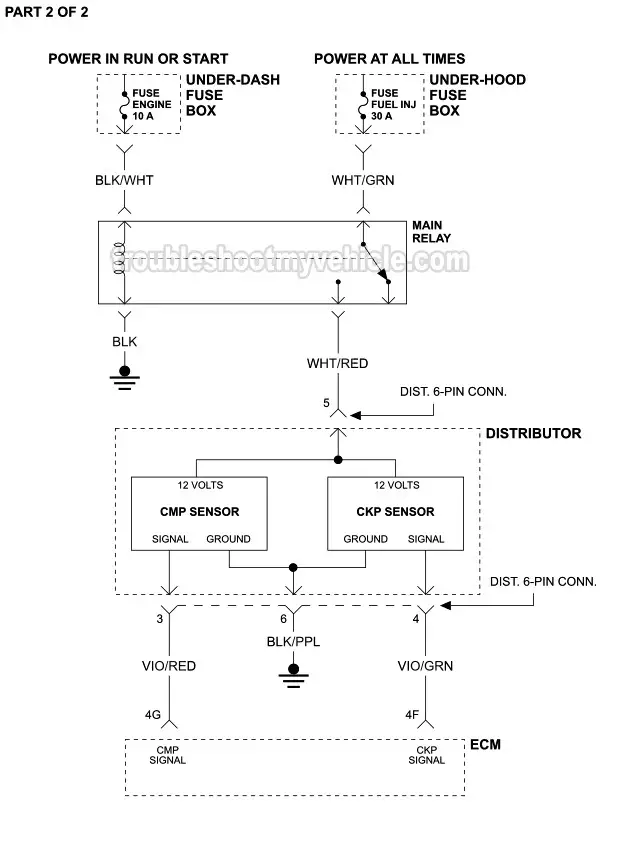

![1995 1.5L Mazda Protege Ignition Circuit Wiring Diagram 1995 1.5L Mazda Protege Ignition Circuit Wiring Diagram](/images/articles-900-999/960/964/circuit-diagram-2.jpg)
APPLIES TO: This wiring diagram applies to the following vehicles:
- 1995 1.5L Mazda Protege.
The wiring diagram includes the following circuits:
- Ignition coil.
- Ignition control module.
- Camshaft position (CMP) sensor.
- Crankshaft position (CKP) sensor.
RELATED WIRING DIAGRAMS:
- Ignition System Wiring Diagram (1996 1.5L Mazda Protege -Federal Emissions).
- Ignition System Wiring Diagram (1996 1.5L Mazda Protege -California Emissions).
- Ignition System Wiring Diagram (1997-1998 1.5L Mazda Protege).
