Here you'll find the essential tune-up specifications for the 1997-2000 4.2L V6 Ford E150 and E250.
Contents of this tutorial:
APPLIES TO: Applies to the following vehicles:
- 4.2L V6 Ford E150: 1997, 1998, 1999, 2000.
- 4.2L V6 Ford E250: 1997, 1998, 1999, 2000.
Ignition System Specifications
![Firing Order And Cylinder Identification (1997, 1998, 1999, 2000 4.2L V6 Ford E150, E250) Firing Order And Cylinder Identification (1997, 1998, 1999, 2000 4.2L V6 Ford E150, E250)](/images/articles-1200-1299/1230/1237/image_4.webp)
Ignition Coil Resistance (@ 75 °F) | |
---|---|
Primary | 0.5 Ohms |
Secondary | None Given |
Spark Plug Wire Resistance Specification |
---|
7000 Ohms Per Foot |
Spark Plug Gap | Torque |
---|---|
0.052-0.056 inches (1.32-1.42 MM) | 7-14 Ft. lbs. (9-20 N.m.) |
Base Ignition Timing |
---|
Non ajustable. |
OE Spark Plug |
---|
Motorcraft AGSF-34EE |
Firing Order |
---|
1-4-2-5-3-6 |
The following tutorial will help you test the ignition system:
Fuel System Specifications
The electric fuel pump is located inside the fuel tank.
Fuel Pressure With The Key On Engine Off |
---|
35-45 PSI |
Fuel Pressure With The Key On Engine Running |
---|
28-45 PSI |
The following tutorial will help you test the fuel pump:
Fuel Injector Resistance |
---|
10-18 Ohms (individual resistance at room temp). |

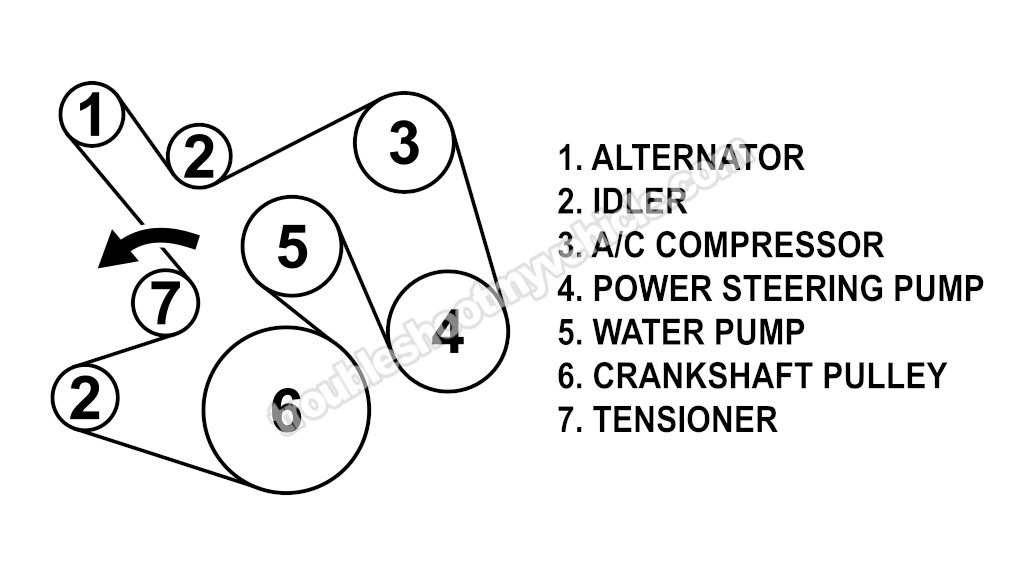

Drive Belt Routing Diagram
![Drive Belt Routing Diagram (1997, 1998, 1999, 2000 4.2L V6 Ford E150, E250) Drive Belt Routing Diagram (1997, 1998, 1999, 2000 4.2L V6 Ford E150, E250)](/images/articles-1200-1299/1240/1245/image_4.webp)
Intake Manifold Bolt Torque Specifications
![Intake Manifold Bolt Tightening Sequence (1997, 1998, 1999, 2000 4.2L V6 Ford E150, E250) Intake Manifold Bolt Tightening Sequence (1997, 1998, 1999, 2000 4.2L V6 Ford E150, E250)](/images/articles-1200-1299/1240/1245/image_2.webp)

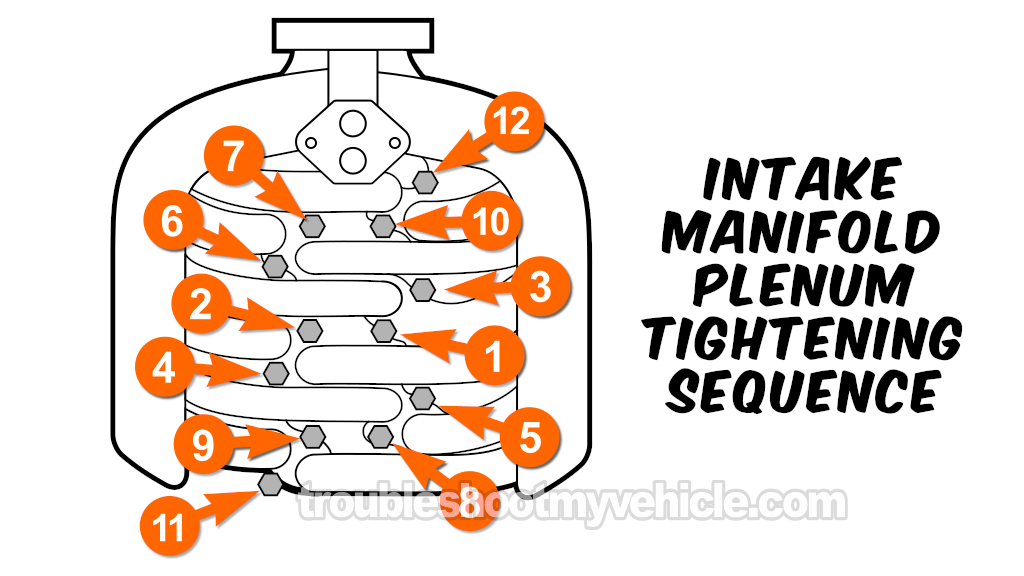

The illustration above shows the intake manifold bolt tightening sequence to avoid damage to the intake manifold gasket or vacuum leaks.
NOTE: Install the intake manifold gaskets without any type of sealer.
Upper Intake Manifold Bolt Torque Specifications |
---|
STEP 1: 71 Inch Lbs. |
STEP 2: 90 degrees |
Lower Intake Manifold Bolt Torque Specifications |
---|
STEP 1: 44 Inch Lbs. |
STEP 2: 71-101 Inch Lbs. |
Exhaust Manifold Bolt Torque Specifications
NOTE: Install the exhaust manifold gaskets without any type of sealer.
Exhaust Manifold To Cylinder Head Bolt Torque Specifications |
---|
15-22 Ft. Lbs. |
Exhaust Manifold To Y-Pipe Torque Specifications |
---|
30-33 Ft. Lbs. |
Cylinder Head Bolt Torque Specifications
![Cylinder Head Bolt Tightening Sequence (1997, 1998, 1999, 2000 4.2L V6 Ford E150, E250) Cylinder Head Bolt Tightening Sequence (1997, 1998, 1999, 2000 4.2L V6 Ford E150, E250)](/images/articles-1200-1299/1240/1245/image_3.webp)

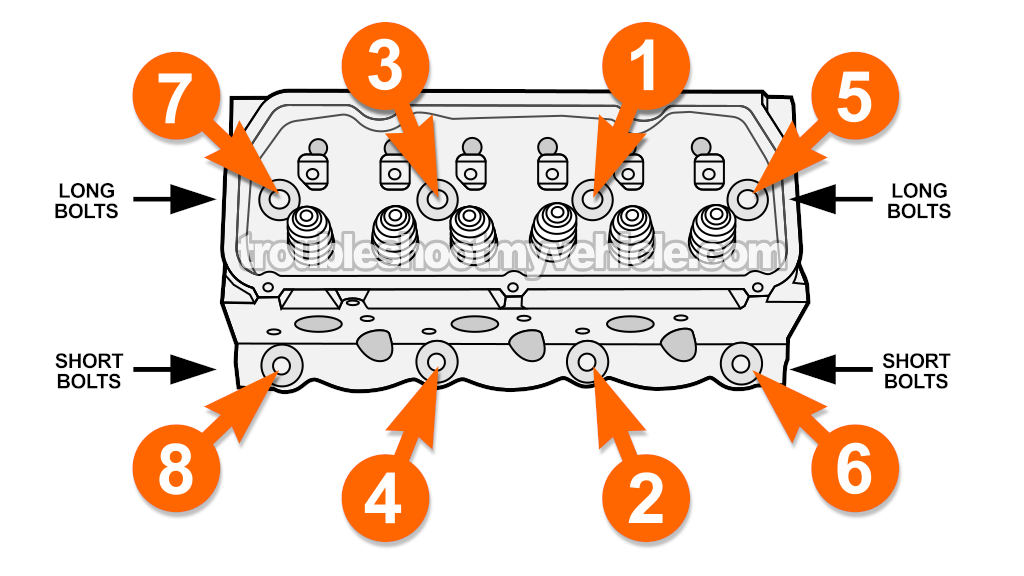

The illustration above shows the cylinder head bolt tightening sequence.
NOTE: Use new cylinder head bolts.
Before installing the cylinder head bolts, clean and oil their threads. Use 5W30 engine oil to lubricate the cylinder head bolt threads.
NOTE: Install the cylinder head gasket without any type of sealer.
Cylinder Head Torque Specifications | |
---|---|
Step 1 | 14 Ft. Lbs. (20 N.m) NOTE: Bolts must be tightened in sequence. |
Step 2 | 29 Ft. Lbs. (40 N.m) |
Step 3 | 36Ft. Lbs. (50 N.m) |
Step 4 | Loosen all bolts 3 turns in the sequence shown (see illustration above). |
Step 5 | Tighten all short bolts to 15-22 Ft. Lbs. (20-30 N.m) |
Step 6 | Tighten all long bolts to 30-36 Ft. Lbs. (40-50 N.m) |
Step 7 | Tighten all bolts an additional 175°-185° (DO NOT use a torque wrench!) |
More 4.2L Ford E150 And E250 Test Tutorials
If this tutorial was helpful, be sure and take a look at all of the 4.2L V6 E150 and E250 diagnostic tutorials and wiring diagrams in this index:
