![Starter Motor Circuit Wiring Diagram (1997-1998 4.2L V6 Ford E150, E250) Starter Motor Circuit Wiring Diagram (1997-1998 4.2L V6 Ford E150, E250)](/images/articles-1300-1399/1330/1333/circuit-diagram-1.webp)

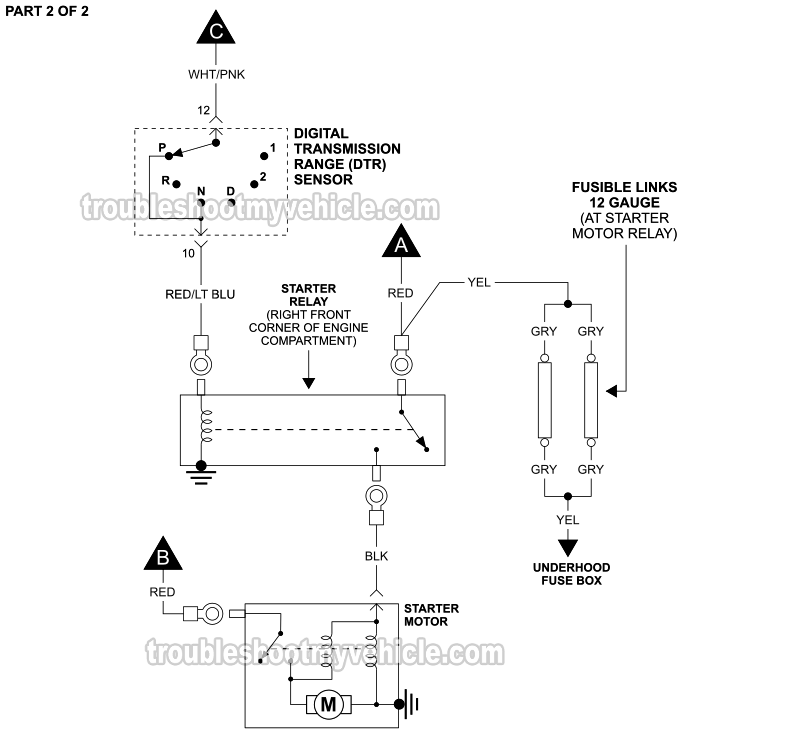

![Starter Motor Circuit Wiring Diagram (1997-1998 4.2L V6 Ford E150, E250) Starter Motor Circuit Wiring Diagram (1997-1998 4.2L V6 Ford E150, E250)](/images/articles-1300-1399/1330/1333/circuit-diagram-2.webp)
APPLIES TO: This starter motor circuit wiring diagram applies to the following vehicles:
- 4.2L V6 Ford E150: 1997, 1998.
- 4.2L V6 Ford E250: 1997, 1998.
NOTE: This wiring diagrams includes the following component circuits:
- Ignition Switch.
- Digital Transmission Range (DTR) Sensor.
- Starter Relay.
- Starter Motor.
Starter Motor Test: I've written a starter motor test tutorial and you can find it here:
Wiring Diagrams: All available 4.2L V6 Ford E150 and E250 van wiring diagrams and tutorials can be found here:
F-Series Pickups: The starter motor circuit wiring diagram for the 1997-2003 4.2L V6 Ford F150 and F250 pickups can be found here:
- Starter Motor Circuit Wiring Diagram (1997-1998 4.2L V6 Ford F150, F250 Light Duty) (at: easyautodiagnostics.com).
- Starter Motor Circuit Wiring Diagram (1999 4.2L V6 Ford F150) (at: easyautodiagnostics.com).
- Starter Motor Circuit Wiring Diagram (2000-2003 4.2L V6 Ford F150) (at: easyautodiagnostics.com).
