![PART 1 of 3: Ignition System Circuit Diagram (1997, 1998, 1999 4.2L V6 Ford E150, E250) PART 1 of 3: Ignition System Circuit Diagram (1997, 1998, 1999 4.2L V6 Ford E150, E250)](/images/articles-1200-1299/1210/1215/circuit-diagram-1-B.webp)

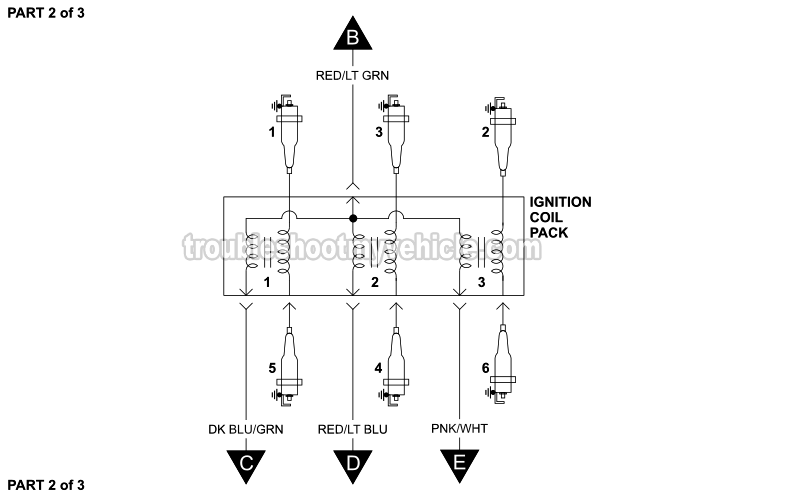

![PART 2 of 3: Ignition System Circuit Diagram (1997, 1998, 1999 4.2L V6 Ford E150, E250) PART 2 of 3: Ignition System Circuit Diagram (1997, 1998, 1999 4.2L V6 Ford E150, E250)](/images/articles-1200-1299/1210/1215/circuit-diagram-2-B.webp)

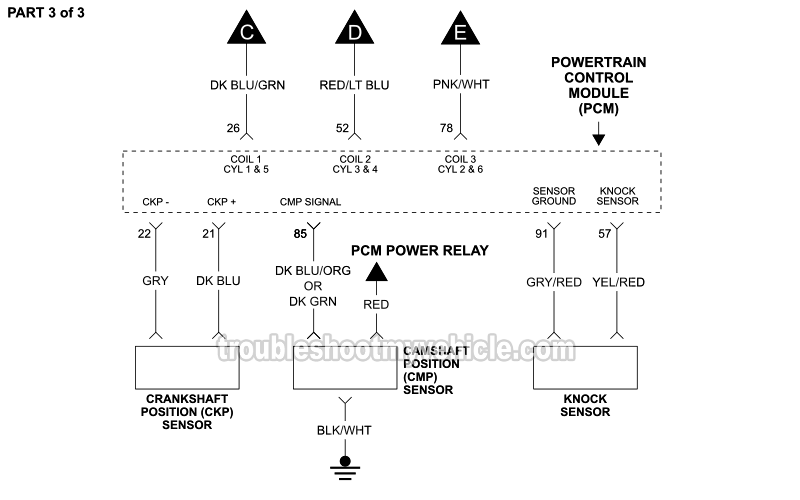

![PART 3 of 3: Ignition System Circuit Diagram (1997, 1998, 1999 4.2L V6 Ford E150, E250) PART 3 of 3: Ignition System Circuit Diagram (1997, 1998, 1999 4.2L V6 Ford E150, E250)](/images/articles-1200-1299/1210/1215/circuit-diagram-3-B.webp)
APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:
- 4.2L V6 Ford E150: 1997, 1998, 1999.
- 4.2L V6 Ford E250: 1997, 1998, 1999.
NOTE: This wiring diagrams includes the following ignition system components:
- Ignition coil pack.
- Crankshaft position (CKP) sensor.
- Camshaft position (CMP) sensor.
- Knock sensor
Ignition Coil Pack Tests: You can find the ignition coil pack test here:
Wiring Diagrams: All available 4.2L V6 Ford E150 and E250 van wiring diagrams and tutorials can be found here:
F-SERIES PICKUPS: The wiring diagram for the 1997-1999 4.2L Ford F150/F50 pickups can be found here:
- Ignition System Wiring Diagram (1997-1999 4.2L V6 Ford E150, E250) (at: easyautodiagnostics.com)
More 4.2L Ford E150 And E250 Test Tutorials
If this tutorial was helpful, be sure and take a look at all of the 4.2L V6 E150 and E250 diagnostic tutorials in this index:
Here's a sample of the tutorials you'll find there:
- How To Test The Throttle Position Sensor (1997-2000 4.2L V6 Ford E150, E250).
- How To Test Engine Compression (1997-2003 4.2L V6 Ford E150, E250).
- How To Test The Fuel Pump (1997-2000 4.2L V6 Ford E150, E250).
- How To Test The CKP Sensor With A Multimeter (1997-2003 4.2L V6 Ford E150, E250).
- How To Test For A Blown Head Gasket (1997-2003 4.2L V6 Ford E150, E250).
