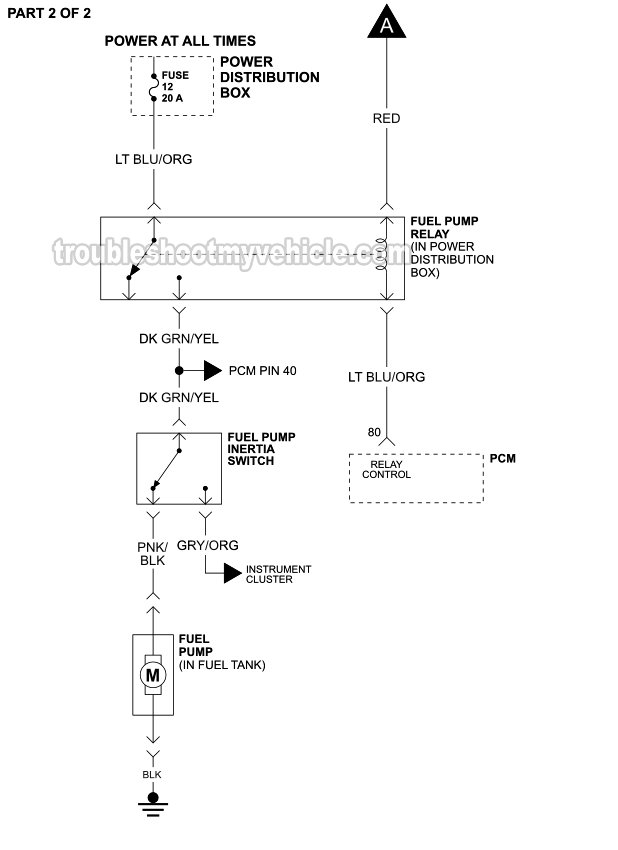

Fuel Pump Circuit Wiring Diagram (1996 4.0L Ford Explorer)

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:

• 1996 4.0L Ford Explorer.

The wiring diagram includes the following circuits:

• PCM Power Relay.
• Fuel Pump Relay.
• Fuel Pump Inertia Switch.
• Fuel Pump.
