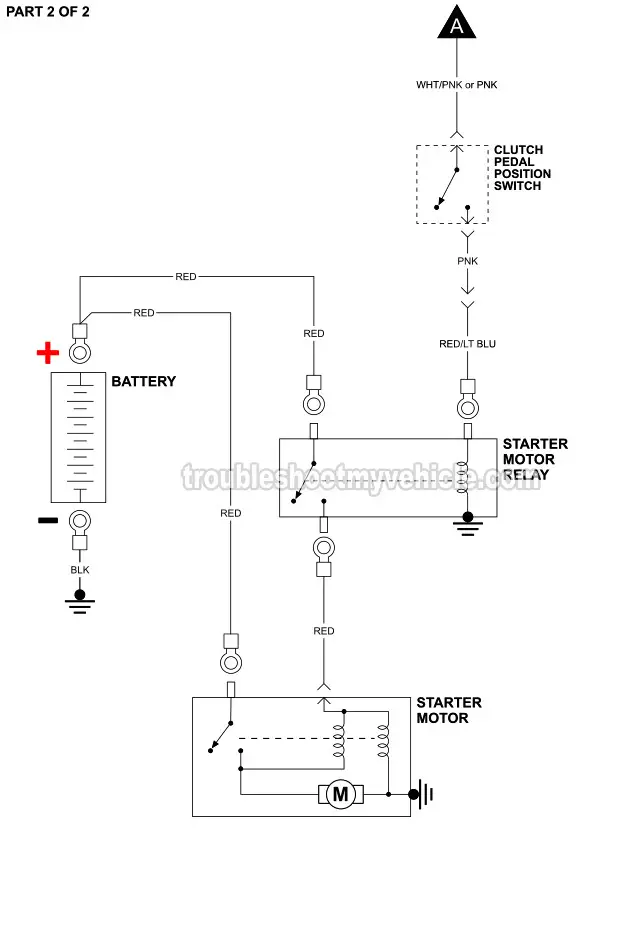

Page 2 of 2

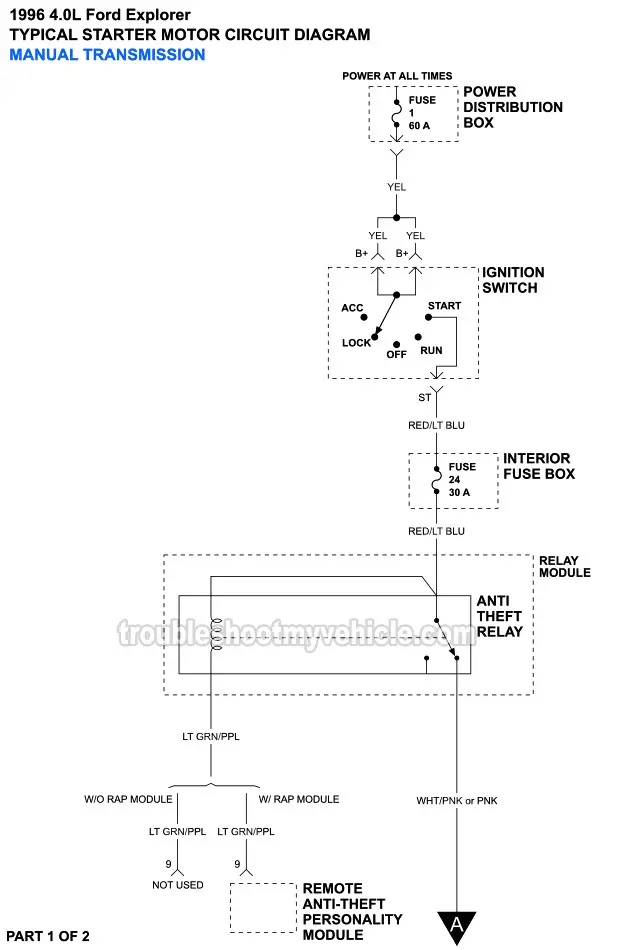

Starter Motor Wiring Diagram W/ Manual Transmission
APPLIES TO: This starter motor circuit wiring diagram applies to the following vehicles:
- 1996 4.0L Ford Explorer.
RELATED WIRING DIAGRAMS:
- Ignition System Wiring Diagram (1996 4.0L Ford Explorer).
- Fuel Pump Circuit Wiring Diagram (1997 4.0L Ford Explorer).
