Starter Motor Wiring Diagram (1996 4.0L Ford Explorer)

  • By: Abraham Torres-Arredondo
  • Created: 24 December 2021
  • Updated: 01 January 2025
  • Articl Id: 1092
Page 1 of 2

Starter motor circuit wiring diagram for the 1996 4.0L Ford Explorer with automatic and manual transmission.

Contents of this tutorial:

Starter Motor Wiring Diagram W/ Automatic Transmission

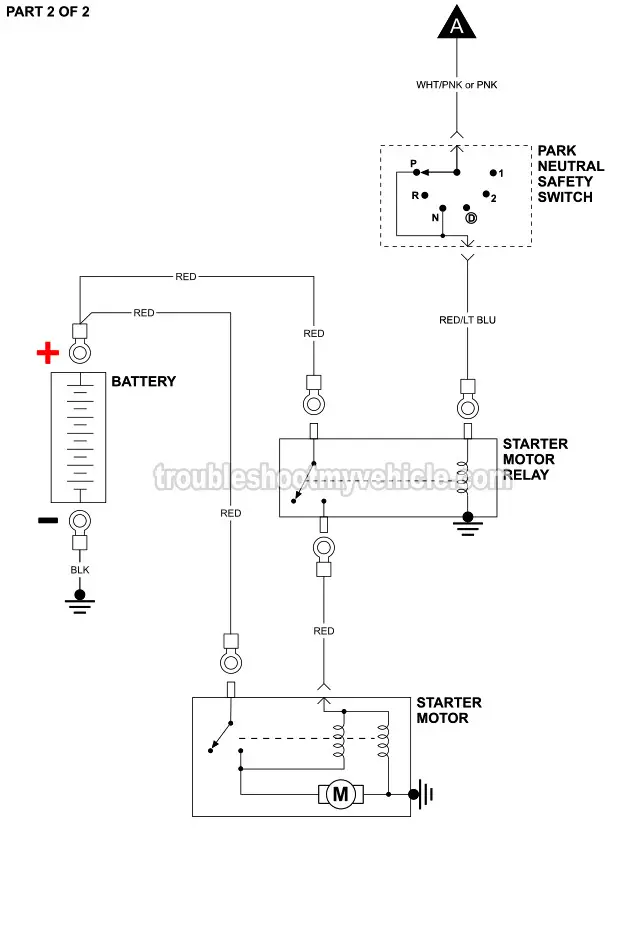

PART 1 OF 2: 1996 4.0L Ford Explorer Starter Motor Wiring Diagram W/ Automatic Transmission. PART 2 OF 2: 1996 4.0L Ford Explorer Starter Motor Wiring Diagram W/ Automatic Transmission.

APPLIES TO: This starter motor circuit wiring diagram applies to the following vehicles:

  • 1996 4.0L Ford Explorer.
