Ignition System Wiring Diagram (1996 4.0L Ford Explorer)

  • By: Abraham Torres-Arredondo
  • Created: 16 December 2021
  • Updated: 12 December 2022
  • Articl Id: 1086

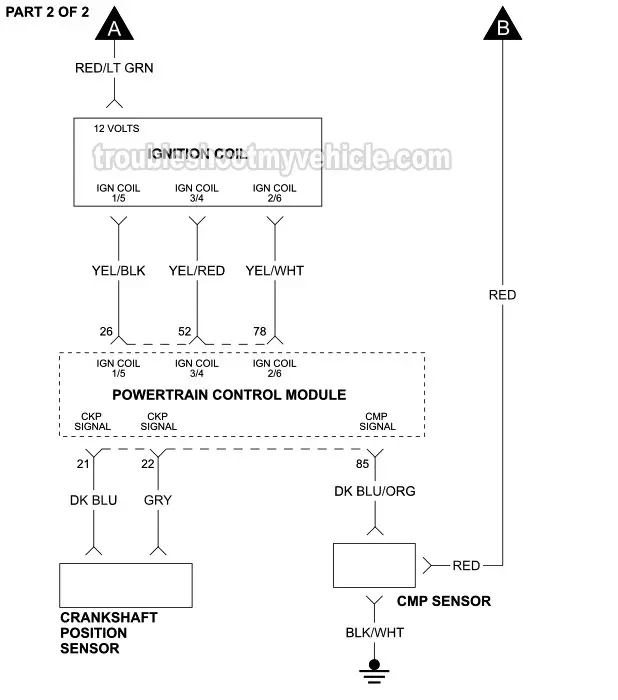

PART 1 OF 2: 1996 4.0L Ford Explorer Ignition System Circuit Wiring Diagram PART 2 OF 2: 1996 4.0L Ford Explorer Ignition System Circuit Wiring Diagram

APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:

  • 1996 4.0L (OHV) Ford Explorer.

The wiring diagram includes the following circuits:

  • PCM power relay.
  • Ignition coil pack.
  • Crankshaft position (CKP) sensor.
  • Camshaft position (CMP) sensor.
