Ignition System Wiring Diagram (1997 4.0L Ford Explorer)

4.0L SOHC V6 Ignition System Wiring Diagram

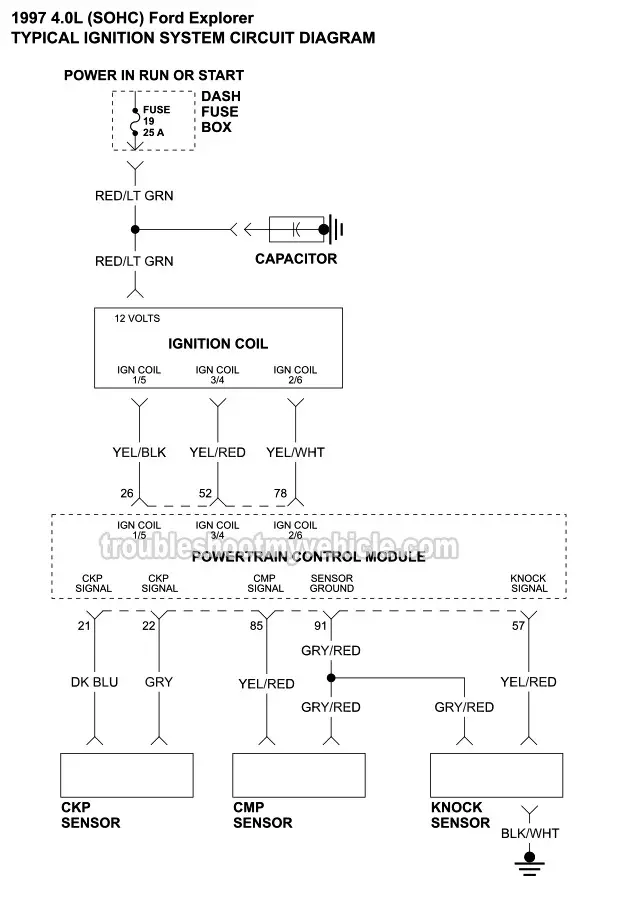

1997 4.0L SOHC Ford Explorer Ignition System Circuit Wiring Diagram

APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:

  • 1997 4.0L (SOHC) Ford Explorer.

The wiring diagram includes the following circuits:

  • Ignition coil pack.
  • Crankshaft position (CKP) sensor.
  • Camshaft position (CMP) sensor.
  • Knock sensor.
