Ignition System Wiring Diagram (1997 4.0L Ford Explorer)

  • By: Abraham Torres-Arredondo
  • Created: 24 December 2021
  • Updated: 12 December 2022
  • Articl Id: 1091
Page 1 of 2

Ignition system wiring diagram for the 1997 over head valve (OHV) and single over head camshaft (SOHC) 4.0L Ford Explorer.

Contents at a glance:

4.0L OHV V6 Ignition System Wiring Diagram

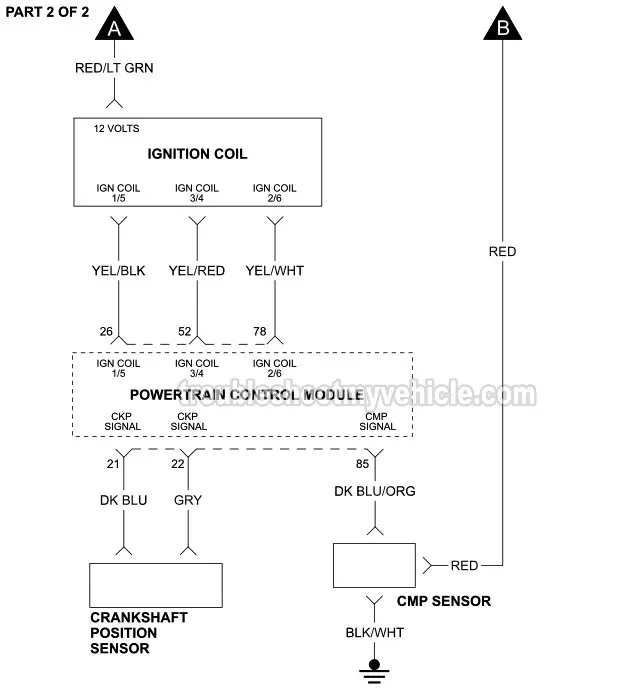

PART 1 OF 2: 1997 4.0L OHV Ford Explorer Ignition System Circuit Wiring Diagram PART 2 OF 2: 1997 4.0L OHV Ford Explorer Ignition System Circuit Wiring Diagram

APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:

  • 1997 4.0L (OHV) Ford Explorer.

The wiring diagram includes the following circuits:

  • PCM power relay.
  • Ignition coil pack.
  • Crankshaft position (CKP) sensor.
  • Camshaft position (CMP) sensor.
