Sensor Power And Ground Circuit Wiring Diagram (2004-2005 4.7L V8 Dodge Ram Pickup)

APPLIES TO: This sensor power and Ground circuit wiring diagram applies to the following vehicles:

• 4.7L V8 Dodge 1500 Pickup: 2004, 2005.

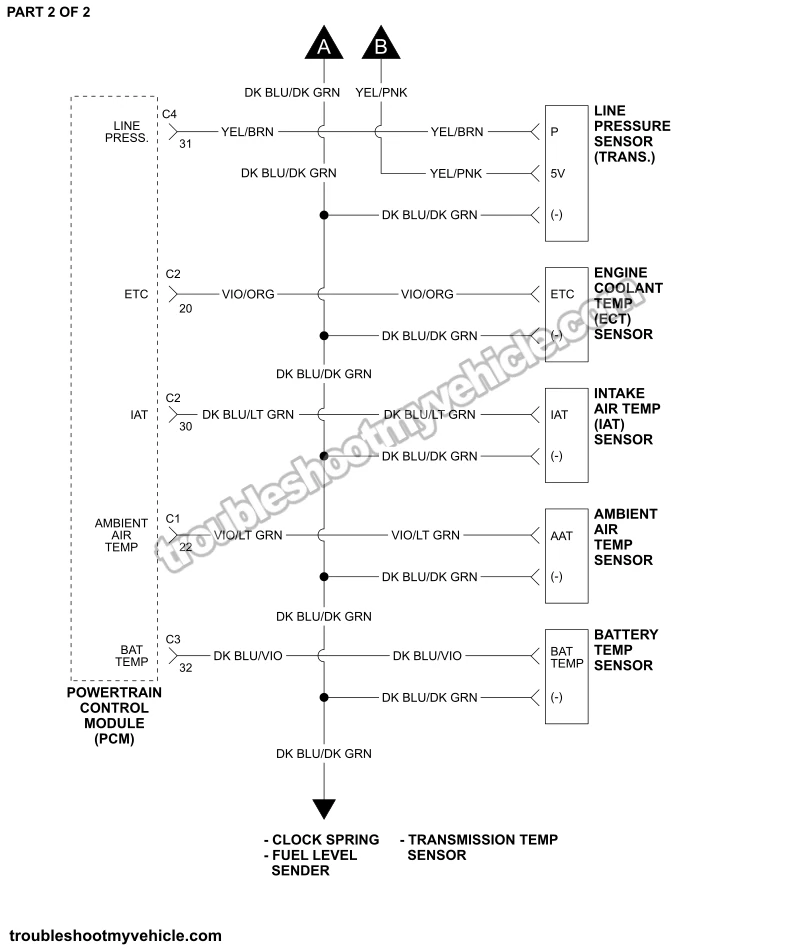

This typical circuit diagram includes the following circuits:

• Engine Coolant Temp (ECT) Sensor.
• Intake Air Temp (IAT) Sensor.
• CMP Sensor
• CKP Sensor
• MAP Sensor.
• TPS Sensor.
