Misfire codes like P0300 to P0308 often point you in the right direction —but it takes a step-by-step approach to find out what's really causing the issue.
Whether it's a bad coil, clogged injector, low compression, or a vacuum leak, I'll walk you through a proven diagnostic strategy to check each system one at a time.
By the way, to execute this troubleshooting plan you don't need expensive diagnostic tools, so if your 2002–2009 Dodge Ram 4.7L V8 is misfiring or idling rough, this guide will help you get to the root of the problem without wasting time or money.
Contents of this tutorial:
APPLIES TO: This tutorial applies to the following vehicles:
- 4.7L V8 Dodge Ram 1500 Pickup: 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009.
What Is A Cylinder Misfire?
The 4.7L V8 in your Dodge Ram needs three things in every cylinder to run smoothly: spark, fuel, and compression.
When any one of those is missing or compromised, that cylinder will misfire —and you'll feel it. The truck might idle rough, hesitate when accelerating, or feel like it's lost power under load.
A cylinder misfire almost always triggers the Check Engine Light —often flashing when the problem is severe— and sets diagnostic trouble codes. These might be general like P0300 (random or multiple-cylinder misfire), or pinpointed to a specific cylinder like P0301 through P0308.
Common misfire symptoms on the 4.7L Dodge Ram pickup:
- Shaky or uneven idle.
- Stumbling or hesitation during acceleration.
- Noticeable power loss when towing or under heavy load.
- Flashing or steady Check Engine Light.
- OBD II codes: P0300, P0301–P0308.
Don't ignore a misfire —it's not just about rough performance. Prolonged misfiring can damage your catalytic converter and lead to more expensive engine trouble.
In this guide, I'll help you find out whether the root cause is ignition-related, fuel-related, or mechanical— so you can fix it before it turns into something bigger.
How To Troubleshoot A Cylinder Misfire
Tracking down a misfire on your 4.7L Dodge Ram might seem overwhelming at first, but it all comes down to three key areas: spark, fuel, and compression.
If any of those is missing or underperforming in a cylinder, it's going to misfire —and your truck's onboard diagnostics will usually identify the problematic cylinder.
Let me tell you from personal experience, you don't need to guess or start replacing parts blindly. With a few targeted tests, you can isolate the issue quickly and get your Ram pickup running right again.
Here's how I approach diagnosing a cylinder misfire on the 4.7L V8 Dodge Ram pickup:

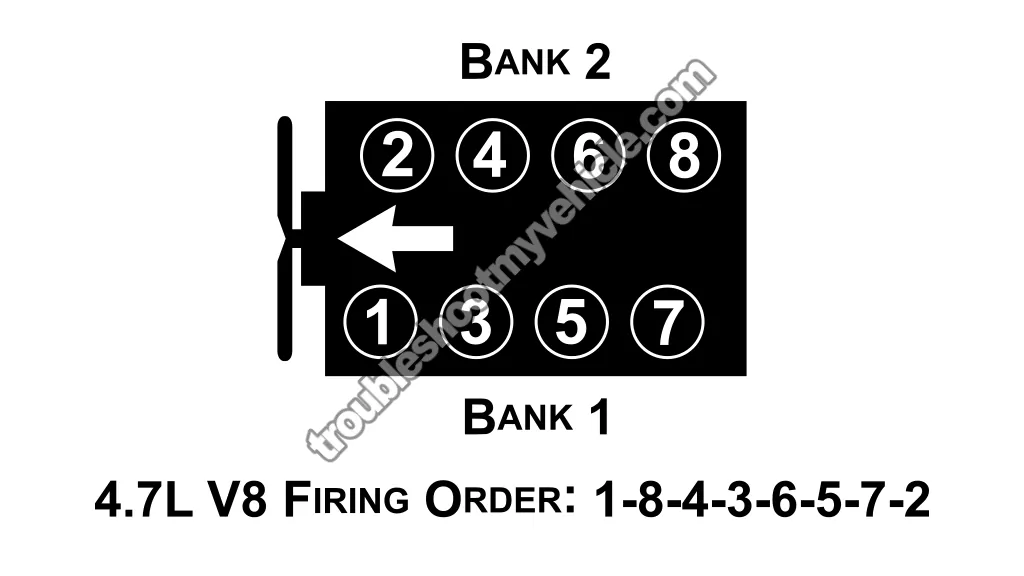

- STEP 1: Pinpoint the misfiring cylinder
- Finding which cylinder isn't contributing power is the first major step in solving a misfire.
- On these OBD II-equipped Rams, a quick scan with a code reader usually tells you exactly where the issue is. Codes like P0300 (random misfire) or P0301 through P0308 (specific cylinder) will point you in the right direction.
- If no cylinder specific codes are present —or if you're dealing with a condition that hasn't yet triggered the Check Engine Light— you can run a manual cylinder balance test to isolate the weak one. It's quick, simple, and works great when codes aren't giving you the full picture.
- STEP 2: Check for spark at the misfiring cylinder
- Once you've identified which cylinder is misfiring, the next step is to verify it's getting spark.
- The 4.7L V8 uses a coil-on-plug (COP) system —so each cylinder has its own ignition coil mounted directly on top of the spark plug.
- Start by removing the ignition coil and inspecting both the coil boot and the spark plug for signs of damage, wear, or fouling.
- If you're not getting spark at that cylinder, the issue is in the ignition system —and not fuel-related.
- Need help testing the ignition coil? Follow this step-by-step guide:
- STEP 3: Examine the spark plug and coil boot on the misfiring cylinder
- With the ignition coil removed, take out the spark plug and closely inspect both the plug and the rubber coil boot for damage or contamination.
- One common issue on the 4.7L V8 is oil leaking into the spark plug well —usually from a worn valve cover gasket. When that happens, the plug and boot may be soaked in oil, which can easily cause a misfire.
- If you find oil in the spark plug tube, that's part of your problem. You'll need to clean the well thoroughly, replace the valve cover gasket, and install new spark plugs. The ignition coil boot should also be replaced —oil contamination often ruins the rubber and causes future misfires.
- As for the spark plug itself, look for carbon tracking, worn electrodes, heavy deposits, or any cracks in the porcelain insulator.
- This guide on spark plug failures might come in handy:
- These real life case studies will shed more light on installation errors and carbon tracks:
- Diagnosing A Toyota Corolla Misfire Case Study.
- Carbon Tracks Are A Common Cause Of Ignition Misfires (at: easyautodiagnostics.com).
- STEP 4: Check compression in the misfiring cylinder
- If ignition checks out, the next step is to verify that the misfiring cylinder has solid mechanical compression.
- This step gets skipped more often than it should —but it's absolutely crucial when you're chasing down a persistent misfire, especially one that doesn't respond to ignition or fuel system repairs.
- Compression in the misfiring cylinder should be within 15% of the highest reading among all cylinders. If it's significantly lower, that cylinder won't fire correctly —no matter how many ignition or fuel parts you replace.
- Need help running a compression test? This guide will walk you through the entire process:
- Want to see how low compression can cause a misfire? This case study breaks it down step by step:
- STEP 5: Check the misfiring cylinder's fuel injector resistance
- If spark and compression check out, your next focus is the fuel injector. A weak or failed injector can easily cause a misfire —even if everything else looks fine.
- Use a multimeter to measure resistance across the injector's terminals. On the 4.7L Dodge Ram, you should see somewhere around 11 to 15 Ohms, but always compare to factory specs or other known-good injectors on your engine.
- Need help with this test? Follow this detailed walkthrough:
- STEP 6: Make sure the injector is receiving power and being pulsed
- A healthy injector needs two things to function: a steady 12 Volt supply and a pulsed Ground signal from the PCM. If either is missing, the injector won't fire and the cylinder won't get fuel.
- You can test this quickly using a Noid light —just unplug the injector connector, plug in the Noid light, and crank the engine. It should blink if the PCM is triggering the injector correctly.
- Here's a guide that explains exactly how to use one:
- How To Use A Noid Light And Where To Buy It (at: easyautodiagnostics.com).
- STEP 7: Perform a fuel injector spray pattern test
- This step comes after you've verified spark, compression, injector pulse, and resistance —it's the final check before pulling the trigger on replacement.
- Remove the injector from the misfiring cylinder and connect it to a fuel injector spray test kit. These tools are simple, affordable, and let you observe the injector outside the engine.
- When activated, a healthy injector should produce a fine, even cone-shaped mist. If it dribbles, sprays unevenly, or doesn't spray at all, it's clogged or restricted.
- For a full walkthrough, check out this step-by-step guide:
When it comes to diagnosing a cylinder misfire —whether it's setting a P0300–P0308 code or just causing drivability issues— the key is to follow a process of elimination.
Start by identifying which cylinder isn't contributing power (the "dead" one). Once you've found the culprit, the next steps are all about confirming that cylinder has spark, compression, and fuel.
Work through the test steps above in order, and you'll be able to quickly pinpoint what's missing —without throwing parts at the problem or wasting time chasing blind leads.
Vacuum Leaks —A Common Cause Of Misfire And Rough Idle
One of the most overlooked causes of misfires and idle problems on the 4.7L Dodge Ram pickup is a simple vacuum leak. These engines use a plastic intake manifold sealed with rubber gaskets, and over time, those gaskets tend to harden, shrink, and lose their ability to hold a tight seal.
When that seal starts to fail, unmetered air sneaks into the engine —bypassing the MAP sensor entirely. That throws off the air/fuel ratio, especially at idle or low throttle, where the engine is most sensitive to vacuum integrity.
If the leak is big enough, it'll trigger misfire codes like P0300–P0308, and you'll notice a rough idle, stumbling, or hesitation under light load.
I've seen these rubber gaskets fail a lot and are one of the most common vacuum-related issues on this engine platform.
Common vacuum leak sources on the 4.7L V8:
- Rubber intake manifold gaskets —hardened or shrunken (very common).
- Vacuum hoses —cracked, loose, or disconnected.
- PCV system hoses —including brittle elbows or split lines.
- Brake booster hose —leaks at the hose or failed check valve.
- Vacuum fittings —cracked plastic ports on the intake manifold.
The good news is vacuum leaks are usually easy to detect. You can use a can of carburetor cleaner or a propane enrichment tool —spray around potential leak spots with the engine idling. If the RPM jumps or the idle smooths out, you've likely found your leak.
Before replacing ignition or fuel parts, always run a quick vacuum leak check. It's fast, simple, and might just save you from chasing your tail on a stubborn misfire:
