Fuel Pump Circuit Wiring Diagram (2006-2008 4.7L V8 Dodge Ram Pickup)

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:

• 4.7L V8 Dodge 1500 Pickup: 2006, 2007, 2008.

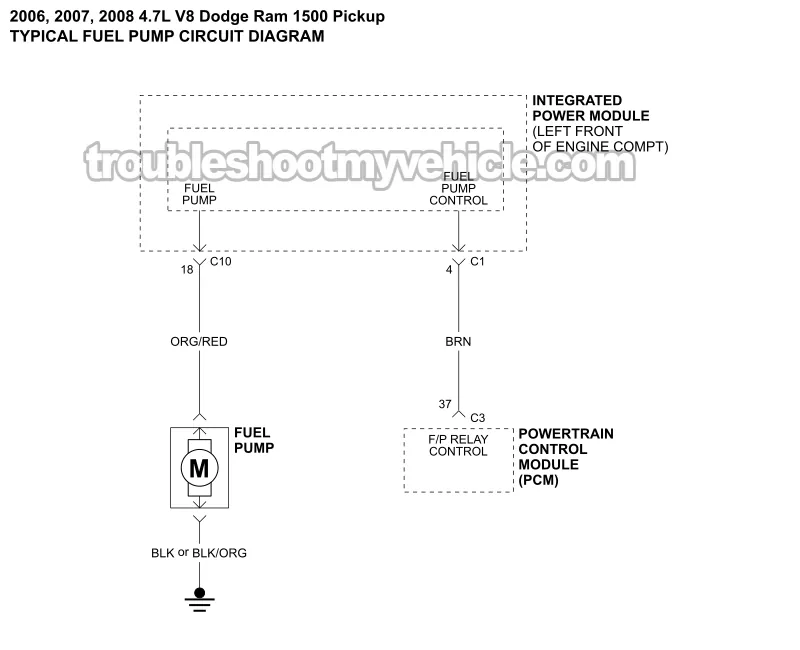

This typical circuit diagram includes the following circuits:

• Fuel pump.
• Integrated Power Module circuits.

The fuel pump is located in the gas tank.

FUEL PUMP PRESSURE TEST:

• How To Test The Fuel Pump (2006-2009 4.7L V8 Dodge Ram Pickup).

ENGINE NO-START DIAGNOSTICS:

• How To Test An Engine No-Start (2002-2009 4.7L V8 Dodge Ram Pickup).
