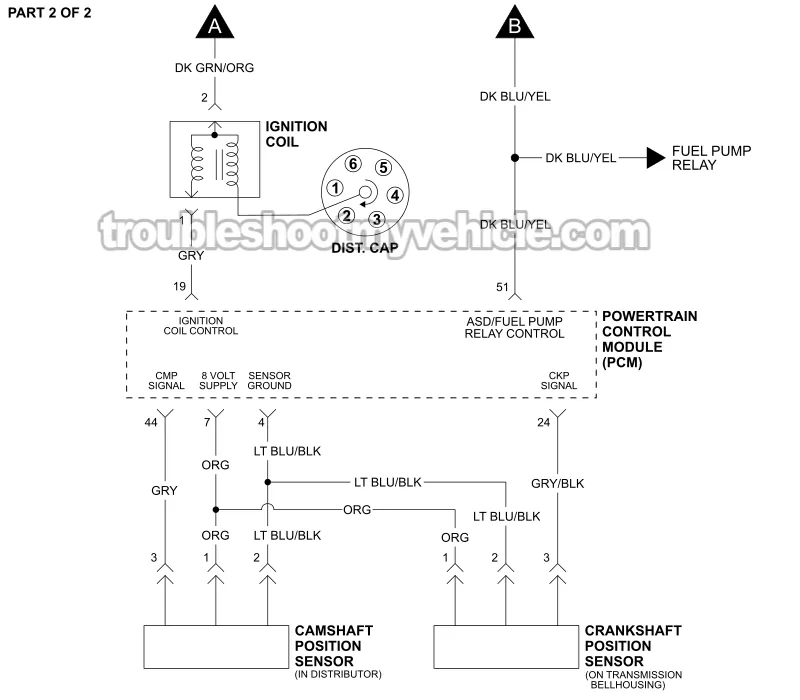

PART 1 -Ignition System Wiring Diagram. 1992, 1993 3.9L V6 Dodge: B150, B250, B350, D150, D250, Ramcharger, W150, W250 PART 2 -Ignition System Wiring Diagram. 1992, 1993 3.9L V6 Dodge: B150, B250, B350, D150, D250, Ramcharger, W150, W250

This simplified ignition system wiring diagram applies to the following vehicles:

  1. 3.9L V6 Dodge B150 Van: 1992, 1993.
  2. 3.9L V6 Dodge B250 Van: 1992, 1993.
  3. 3.9L V6 Dodge B350 Van: 1992.
  4. 3.9L V6 Dodge D150 Pickup: 1992, 1993.
  5. 3.9L V6 Dodge D250 Pickup: 1992, 1993.
  6. 3.9L V6 Dodge W150 Pickup: 1992, 1993.

This typical circuit diagram includes the following circuits: ignition coil, crankshaft position (CKP) sensor, and camshaft position (CMP) sensor.

The camshaft position sensor is also known as the distributor pickup coil.
