How To Test The Igniter (1992-1995 2.2L Toyota Camry)

How To Test The Igniter -Step By Step (1992, 1993, 1994, 1995 2.2L Toyota Camry)

When the igniter (ignition control module) on your 1992, 1993, 1994, or 1995 2.2L Toyota Camry fails, the engine is not gonna' start due a lack of spark.

In this tutorial, I'm gonna' explain how to test the igniter (ignition control module) and the two crankshaft positions sensors inside the distributor.

You don't need any exotic or expensive diagnostic test equipment to follow the test steps in this tutorial.

In Spanish You can find this tutorial in Spanish here: Cómo Probar El Módulo De Encendido 1992-1995 2.2L Toyota Camry (at:

Symptoms Of A Bad Igniter

The Igniter (which is another name for the ignition control module) is the component that activates the ignition coil to start sparking away. When this bad boy fails, your Toyota Camry is not gonna' start due to a lack of spark (at all four cylinders).

What gives away the igniter as defective, when testing it, is the fact that it's getting battery power, ground, and the igniter control signal from the fuel injection computer but it does not activate the ignition coil.

Test The Ignition Coil First

Before you start your igniter diagnostic, you should first test the ignition coil and see if it's sparking (or not) and see if it's being activated by the igniter (or not).

In other words, if the ignition coil is getting the ignition control signal from the igniter (even thought the car doesn't start), then the igniter is functioning correctly and not behind your Camry's no-start condition.

Testing the ignition coil is not hard at all and I've written a 'how to' test the 1992-1995 2.2L Toyota Camry ignition coil tutorial that'll help you do it. You can find it here: How To Test The Ignition Coil (1992-1995 2.2L Camry)

Igniter Circuit Descriptions

How To Test The Igniter -Step By Step (1992, 1993, 1994, 1995 2.2L Toyota Camry)

The Igniter (ignition control module) has 5 wires coming out of its connector. Each one has a specific job to do and here's a brief description of each:

NOTE: To further help you in your diagnostic tests, you can find the 1992-1995 2.2L Toyota Camry ignition system wiring diagram here: Ignition System Wiring Diagram 1994 2.2L Toyota Camry.

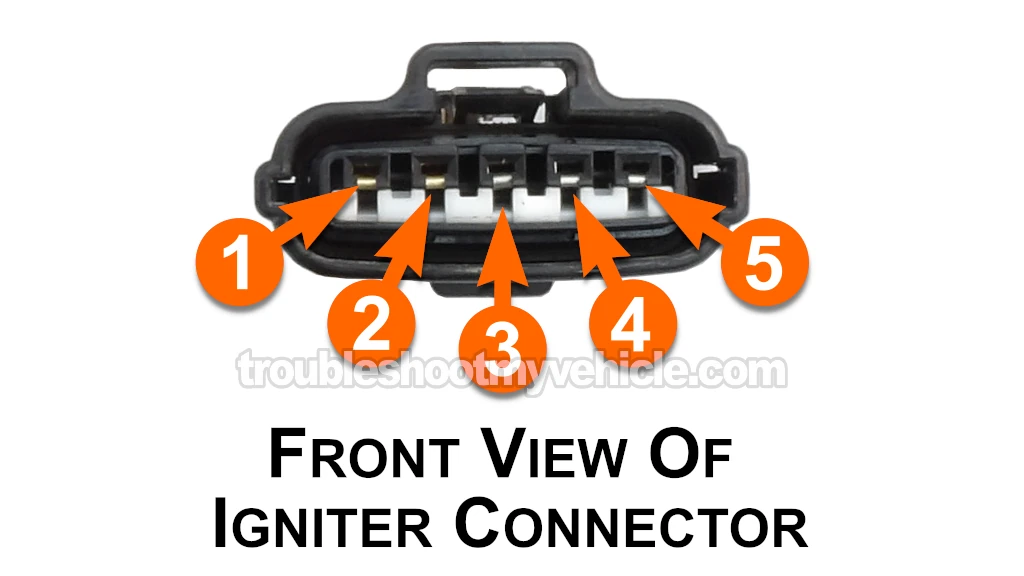

1992-1995 2.2L Camry igniter Connector
Pin Wire Color Description
1 White with red stripe IGF -Ignition coil firing feedback signal
2 White IGT -igniter control signal
3 White with red stripe Bat + -Battery power
4 Black IG- -Tachometer signal
5 Light green IGC -Ignition coil control signal

NOTE: The Igniter harness connector has female metal terminals. You'll need to use a back probe or a wiring piercing probe to test the signals in the wires.
