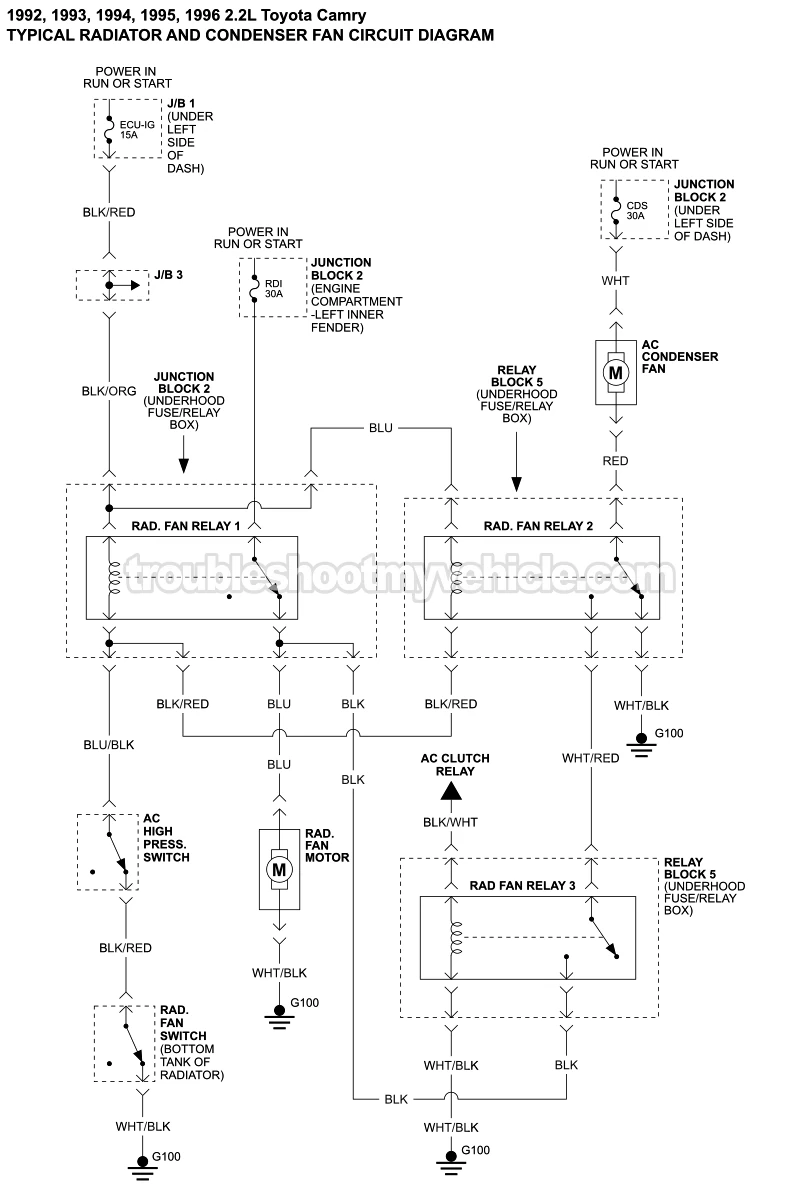

Cooling Fan Circuit Wiring Diagram (1992-1996 2.2L Toyota Camry)

APPLIES TO: This cooling fan circuit wiring diagram applies to the following vehicles:

• 2.2L Toyota Camry: 1992, 1993, 1994, 1995, 1996.

You can find the 1997-2001 cooling fans wiring diagram here:

• Cooling Fan Circuit Wiring Diagram (1997-2001 2.2L Toyota Camry).

NOTE: The cooling system circuit wiring diagram above includes the following circuits:

• Radiator Fan Relay 1.
  • In Junction Block (J/B) 2. This is the fuse/relay box located on the left inner fender in the engine compartment.
• Radiator Fan Relay 2.
  • In Relay Block (R/B) 5. This is the fuse/relay box located on the left inner fender in the engine compartment.
• Radiator Fan Relay 3.
  • In Relay Block (R/B) 5. This is the fuse/relay box located on the left inner fender in the engine compartment.
• Radiator Fan Switch.
  • Located on the bottom tank of the radiator.
• Radiator Fan.
  • Located on the left (driver) side of the radiator.
• Condenser Fan.
  • Located on the right (passenger) side of the radiator.
