Fuel Injectors Circuit Wiring Diagram (1994-1995 2.2L Toyota Camry)

Automatic Transaxle W/ Federal Emissions

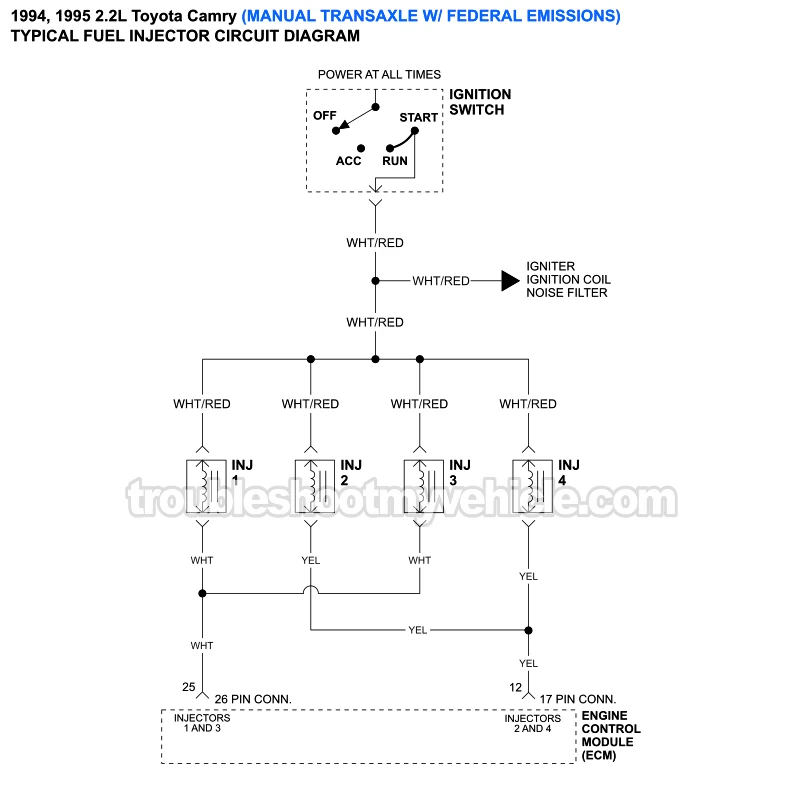

Manual Transaxle W/ Federal Emissions

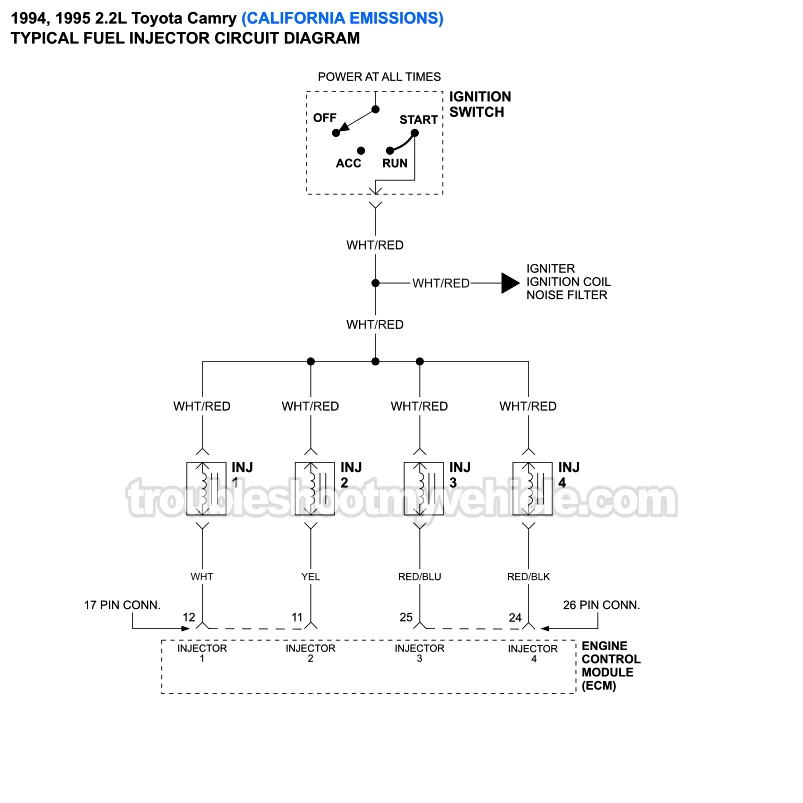

California Emissions

APPLIES TO: This fuel injectors circuit wiring diagram applies to the following vehicles:

• 2.2L Toyota Camry: 1994, 1995.

Fuel Injector Tests: The following tutorial will help you test the fuel injectors:

• How To Test The Fuel Injectors (1992-1996 2.2L Toyota Camry).
