The idle switch on your 3.3L Nissan Pathfinder (Frontier, Xterra, QX4) is part of the throttle position sensor assembly and can be easily tested with a simple multimeter resistance test.
In this tutorial, I'm gonna' show you how to test it and how to adjust it (if you need to replace it).
Contents of this tutorial:
If you need to test the throttle position sensor part of the idle switch, this tutorial will help: Throttle Position Sensor Test (Nissan 3.3L Pathfinder, Xterra, Frontier).
You can find this tutorial in Spanish here: Cómo Probar El Interruptor De Ralentí (Nissan 3.3L Pathfinder, Xterra, Frontier) (at: autotecnico-online.com).
Idle Switch Continuity Tests
Testing the idle switch involves measuring continuity between specific pins of the throttle position sensor assembly.

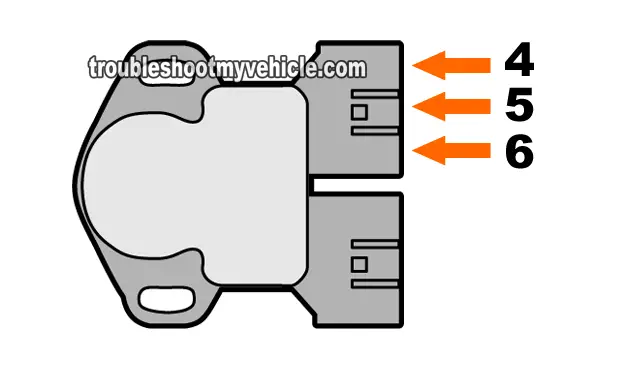

Since the TP sensor assembly is two sensors in one and has two connectors, the pins that we're going to be testing are the ones that the gray connector connects to and these are labeled with the numbers 4, 5 and 6 in the illustration in the image above.
The bottom brown connector connects to the TP sensor part and supplies it with power, ground, and relays the throttle angle voltage signal to the PCM.
|Idle Switch Closed Throttle Specifications|
|Closed Throttle||5 and 6||No Continuity|
|Open Throttle||5 and 6||No Continuity|
|Idle Switch Open Throttle Specifications|
|Closed Throttle||4 and 5||Continuity|
|Open Throttle||4 and 5||No Continuity|
If the throttle switch on your Nissan Pathfinder (Xterra, Frontier, QX4) doesn't pass any of the above pin continuity tests, then before replacing it, you need to make sure that it's not misadjusted. The next subheading will help you with this procedure.
Adjusting The Throttle Position Sensor Assembly
If you need to remove and replace the throttle position sensor assembly, you'll need to adjust it to the correct specification before you bolt it down.
This is a pretty easy adjustment and in this section I'll show you how to do it.
NOTE: The TP sensor assembly needs to be connected to its connectors for this adjustment to take place.
This is what you'll need to do:
- Turn the ignition switch to its OFF position and make sure the TP sensor assembly is connected to its connectors.
- Turn the ignition switch to its ON position but don't start the engine.
- Place your multimeter in Volts DC mode and:
- Connect the red multimeter test lead to the wire that connects to the pin labeled with the number 2 (see the illustration in the image above).
- Ground the black multimeter test lead on the battery negative (-) terminal.
- NOTE: Remember the throttle position sensor assembly must remain connected to its connectors through the entire adjustment.
- Adjust the TPS sensor by rotating it until the output voltage is within specification:
- Specification: 0.3 to 0.7 Volts DC.
- Once the output voltage has reached the above voltage specification, tighten the TP sensor assembly mounting bolts.
- Once you're done, recheck the output voltage to make sure the TP sensor didn't move on you when you tightened the two bolts.
