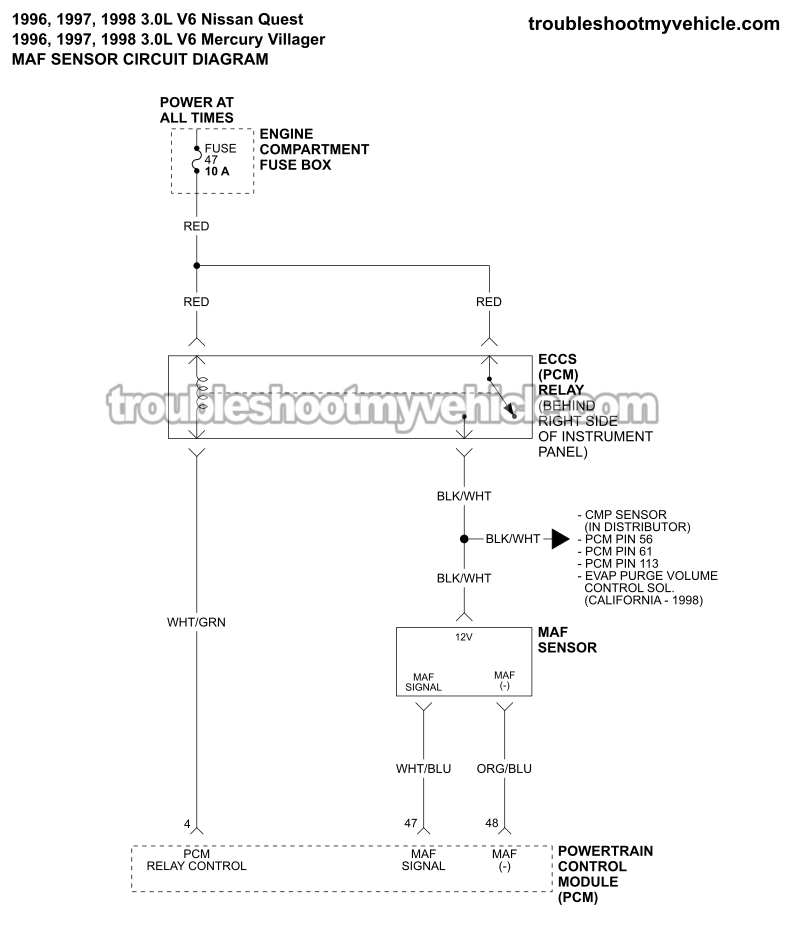

MAF Sensor Circuit Wiring Diagram (1996-1998 3.0L V6 Nissan Quest)

APPLIES TO: This MAF sensor circuit wiring diagram applies to the following vehicles:

• 3.0L V6 Nissan Quest: 1996, 1997, 1998.
• 3.0L V6 Mercury Villager: 1996, 1997, 1998.

WIRE COLOR LEGEND:

• Connector Wire Color Legend (1993-1998 3.0L V6 Nissan Quest).

MAF SENSOR DIAGNOSTIC TESTS:

• How To Test The MAF Sensor (1996-1998 3.0L V6 Nissan Quest).
