Starter Motor Circuit Wiring Diagram (1994-1995 1.5L Honda Civic)

  • By: Abraham Torres-Arredondo
  • Created: 26 November 2024
  • Updated: 26 November 2024
  • Articl Id: 1386
Page 3 of 4

With Manual Transaxle (W/O Anti-Theft)

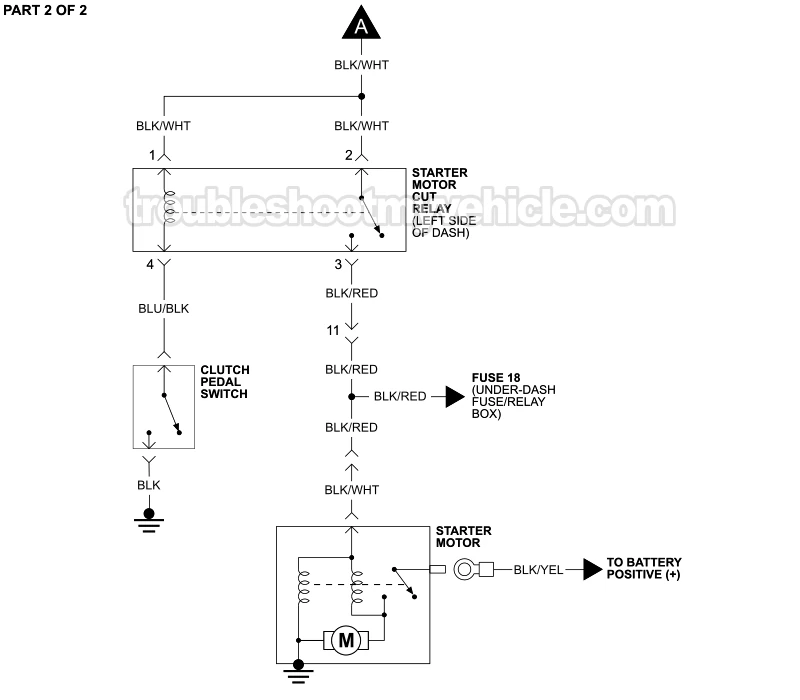

PART 1 of 2: Starter Motor Circuit Wiring Diagram With Manual Transaxle Without Anti-Theft (1995, 1996, 1997, 1998, 1999, 2000 1.6L Honda Civic) PART 2 of 2: Starter Motor Circuit Wiring Diagram With Manual Transaxle Without Anti-Theft (1995, 1996, 1997, 1998, 1999, 2000 1.6L Honda Civic)

APPLIES TO: This starter motor circuit wiring diagram applies to the following vehicles with manual transaxle (MTX) and without anti-theft system:

  • 1.5L Honda Civic CX: 1994, 1995.
  • 1.5L Honda Civic DX: 1994, 1995.
  • 1.5L Honda Civic EX: 1994, 1995.
  • 1.5L Honda Civic LX: 1994, 1995.

The following tutorial will help you test the starter motor:
