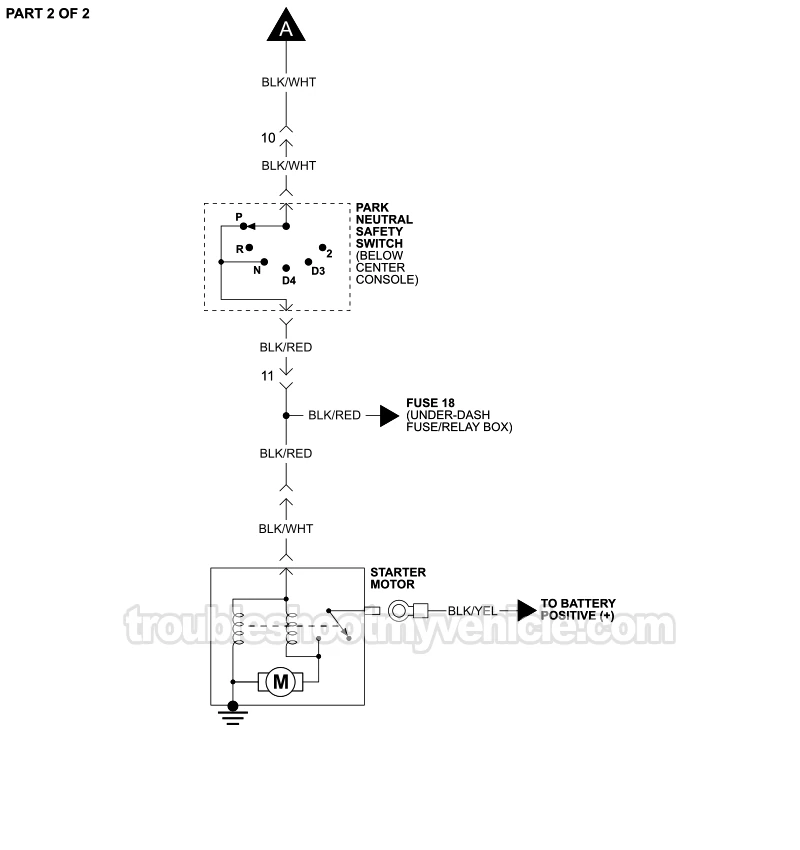

Starter Motor Circuit Wiring Diagram (1994-1995 1.5L Honda Civic)

With Automatic Transaxle (W Anti-Theft)

APPLIES TO: This starter motor circuit wiring diagram applies to the following vehicles with automatic transaxle (ATX) and with anti-theft system:

• 1.5L Honda Civic CX: 1994, 1995.
• 1.5L Honda Civic DX: 1994, 1995.
• 1.5L Honda Civic EX: 1994, 1995.
• 1.5L Honda Civic LX: 1994, 1995.

The following tutorial will help you test the starter motor:

• How To Test The Starter Motor (1992-1995 1.5L Honda Civic).
