Starter Motor Circuit Wiring Diagram (1994-1995 1.5L Honda Civic)

By: Abraham Torres-Arredondo
Created: 26 November 2024
Updated: 26 November 2024
Articl Id: 1386

Page 1 of 4

Contents of this tutorial:

With Automatic Transaxle (W/O Anti-Theft).
With Automatic Transaxle (W Anti-Theft).
With Manual Transaxle (W/O Anti-Theft).
With Manual Transaxle (W Anti-Theft).
Related Wiring Diagrams.
More 1.5L Honda Civic Tutorials.

You can find the 1992-1993 starting system wiring diagrams here:

Starter Motor Circuit Wiring Diagram (1992-1993 1.5L Honda Civic).

With Automatic Transaxle (W/O Anti-Theft)

PART 1 of 2: Starter Motor Circuit Wiring Diagram - With Automatic Transaxle And Without Anti-Theft (1995, 1996, 1997, 1998, 1999, 2000 1.6L Honda Civic)

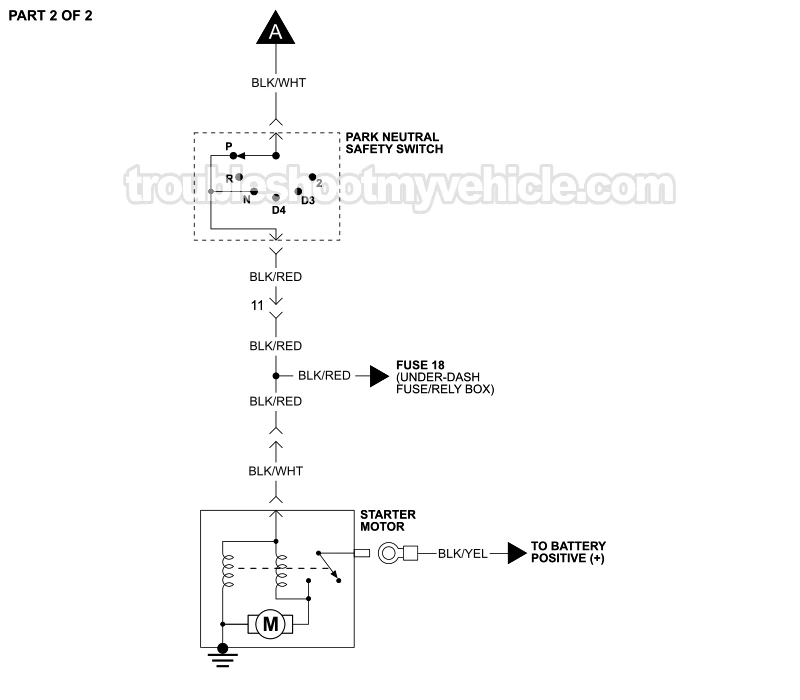

PART 2 of 2: Starter Motor Circuit Wiring Diagram - With Automatic Transaxle And Without Anti-Theft (1995, 1996, 1997, 1998, 1999, 2000 1.6L Honda Civic)

APPLIES TO: This starter motor circuit wiring diagram applies to the following vehicles with automatic transaxle (ATX) and without anti-theft system:

1.5L Honda Civic CX: 1994, 1995.
1.5L Honda Civic DX: 1994, 1995.
1.5L Honda Civic EX: 1994, 1995.
1.5L Honda Civic LX: 1994, 1995.

The following tutorial will help you test the starter motor:

How To Test The Starter Motor (1992-1995 1.5L Honda Civic).
