TEST 4: PCM Power And Ground Tests
So far, you have checked and eliminated quite a few things:
One: 'Opens' in the wires between the PCM connector and TPS connector (TEST 1: TPS Circuit Continuity Tests).
Two: Shorts between the wires of the TPS connector (TEST 2: Circuits Shorted To Each Other).
Three: Shorts to Ground in the TPS connector wires (TEST 3: Checking For Shorts To Ground).
The last thing we'll do is to make sure that the PCM has good Ground and is getting power.
These are the test steps:
- 1
Disconnect the battery negative cable and unplug the PCM from its two connectors. The PCM will remain disconnected from its two connectors for the remainder of the tests.
- 2

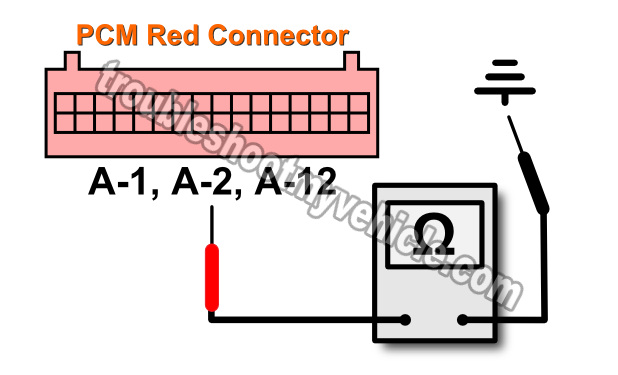

Test continuity between terminals A-1, A-2, and A-12 (of the red connector) and Ground with your multimeter in Ohms (Ω) mode. See image 1 of 2 in the image viewer.
Your multimeter should register continuity (.5 Ohms or less) if these circuits are feed the PCM a good Ground.
IMPORTANT: Don't probe the front of the PCM connector. You need to back-probe the connector or use a wire-piercing probe on the wire that connects to the terminal to be tested. - 3
Re-connect the battery negative cable BUT leave the PCM unplugged from its two connectors. This is so that we can have power available for the next round of tests.
- 4

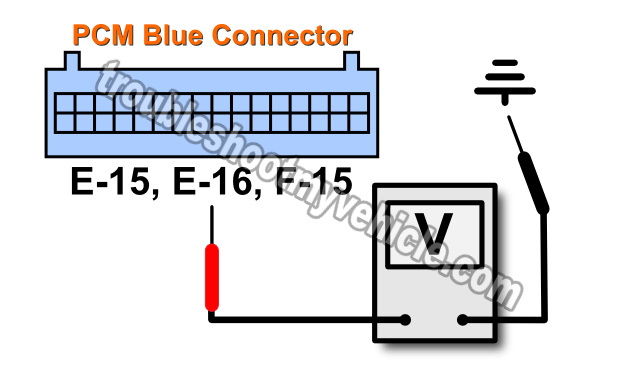

Test terminals E-15, E-16, and F-15 (of the blue connector) for voltage (10 to 12 Volts) with your multimeter in Volts DC mode. See image 2 of 2 in the image viewer.
Terminals E-15 and F-15 will have power only with the key in the On position. Terminal E-16 is hot all of the time.
IMPORTANT: Don't probe the front of the PCM connector. You need to back-probe the connector or use a wire-piercing probe on the wire that connects to the terminal to be tested.
Let's take a look at what your test results mean:
CASE 1: The PCM is being fed power and Ground where indicated in the test steps above. This is the correct and expected test result.
These test results tell you, with about 95% accuracy, that the PCM is probably bad and causing a fake TPS code... only if you have:
- Eliminated the throttle position sensor (TPS) as bad (defective).
- Confirmed all 3 throttle position sensor (TPS) wires have continuity between the PCM and throttle position sensor (TPS) (TEST 1).
- Confirmed that the throttle position sensor (TPS) wires are not shorted together (TEST 2).
- Confirmed that the throttle position sensor (TPS) wires are not shorted to Ground (TEST 3).
CASE 2: The PCM is missing power or Ground. You'll need to solve the missing power or Ground issue and retest.
After restoring the missing power or Ground you'll need to road-test the vehicle and see if it solved the throttle position sensor (TPS) trouble code issue.
