In the table below you'll find the fuse location and description of the fuses of the fuse box on 1993 4.3L, 5.0L, 5.7L TBI equipped 4.3L, 5.0L, and 5.7L pickups.

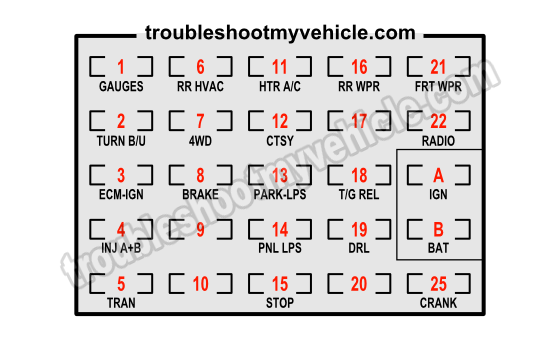

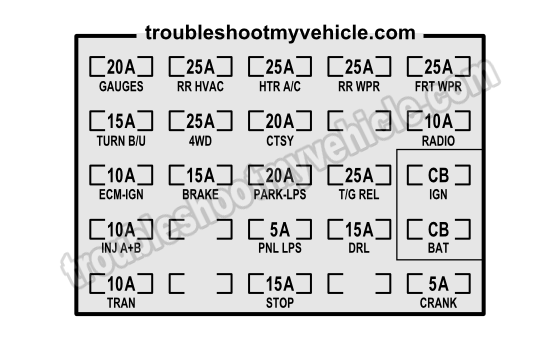

IMPORTANT: The fuse box illustration and fuse descriptions cover the vehicles in the 'Applies To:' box on the right column.

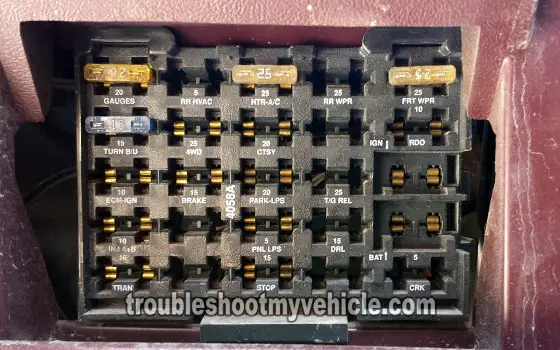

The fuse box is located on the driver side of the dash.
1993 Under Dash Fuse Box | ||
---|---|---|
# | Amps | Fuse Name/Descriptions |
A | 30 Amps | IGN-ACCY (Circuit Breaker)
|
B | 30 Amps | BAT-ACCY (Circuit Breaker)
|
1 | 20 Amps | GAUGES
|
2 | 15 Amps | TURN B/U
|
3 | 10 Amps | ECM-IGN
|
4 | 10 Amps | INJ A+B
|
5 | 10 Amps | TRAN
|
6 | 25 Amps | RR HVAC
|
7 | 25 Amps | 4WD
|
8 | 15 Amps | BRAKE
|
9 | --- | Not Used |
10 | --- | Not Used |
11 | 25 Amps | HTR A/C
|
12 | 20 Amps | CTSY
|
13 | 20 Amps | PARK LPS
|
14 | 5 Amps | PNL LPS
|
15 | 15 Amps | STOP
|
16 | --- | Not Used |
17 | --- | Not Used |
18 | --- | Not Used |
19 | --- | Not Used |
20 | --- | Not Used |
21 | 25 Amps | FRT WIPER
|
22 | 10 Amps | RADIO
|
25 | 5 Amps | CRANK
|
