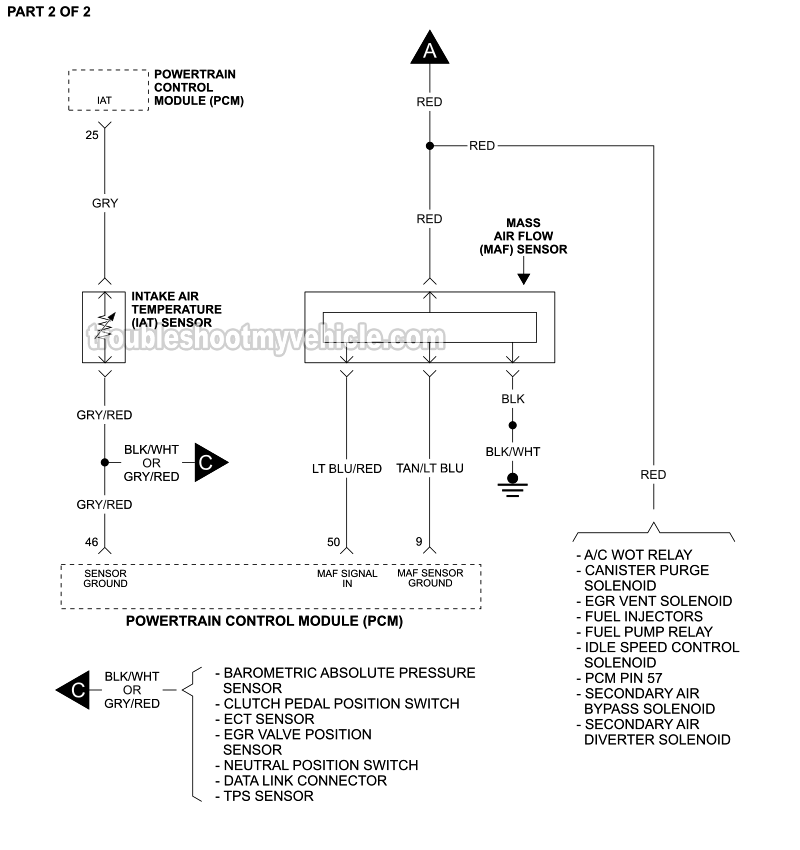

MAF Sensor And IAT Sensor Circuit Wiring Diagram (1993 5.0L V8 Ford Mustang)

APPLIES TO: This mass air flow (MAF) and intake air temperature (IAT) sensor circuit wiring diagram applies to the following vehicles:

• 5.0L V8 Ford Mustang: 1993.

NOTE: This wiring diagrams includes the following component circuits:

• Mass Air Flow (MAF) Sensor.
• Intake Air Temperature (IAT) Sensor.
• EEC Power Relay (PCM Power Relay).

MAF Sensor Tests: The following tutorial will help you test the MAF sensor with a multimeter:

• How To Test The Ford Mass Air Flow (MAF) Sensor (at: easyautodiagnostics.com).
