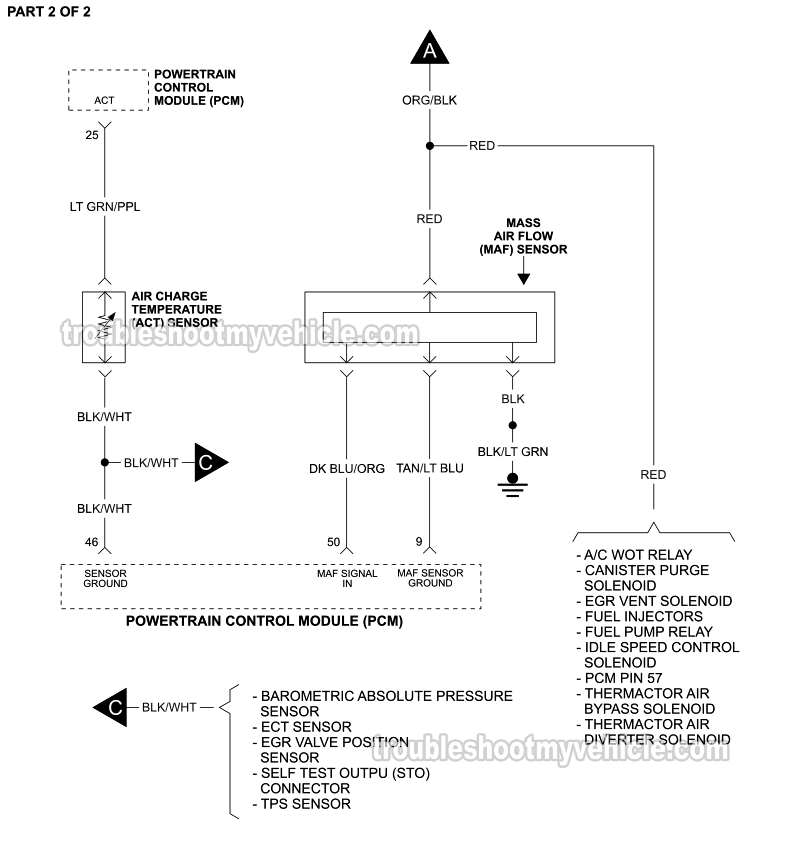

APPLIES TO: This mass air flow (MAF) and air charge temperature (ACT) sensor circuit wiring diagram applies to the following vehicles:
- 5.0L V8 Ford Mustang: 1990.
NOTE: This wiring diagrams includes the following component circuits:
- Mass Air Flow (MAF) Sensor.
- Air Charge Temperature (ACT) Sensor.
- EEC Power Relay (PCM Power Relay).
MAF Sensor Tests: The following tutorial will help you test the MAF sensor with a multimeter:
- How To Test The Ford Mass Air Flow (MAF) Sensor (at: easyautodiagnostics.com).
Wiring Diagrams: You can find all of the available 5.0L V8 Mustang wiring diagrams here:
